Nominal voltage

24 VAC/DC.50/60 Hz

Nominal voltage range

19..29 VAC/DC

Power consumption   motor (motion)

2,0 w

Power consumption   standby (end position)

1,0 w

Wire sizing

4,0 VA

Control

2-/3-point

Auiliary switch

1x SPDT (Ag)

Contact load

5(2.5) A.250 VAC

Switching point

0...95°

Connection motor

cable 1000 mm, 3 x   0,75 mm² (halogen free)

Connection auxiliary   switch

cable 1000 mm, 3 x   0.75 mm2 (halogen free)

Functional data

Torque

5 Nm

Damper size

up to approx. 1 m2

Synchronized speed

±5%

Direction of rotation

selected by switch

Manual override

gearing latch   disengaged with pushbutton, self-resetting

Angle of rotation

0...max.95° can be   limited with adjustable mechanical end stops

Running time

100s/90°

Sound power level

< 35 dB(A)

Shaft coupling

clamp ◊ 8-15 mm / Ø   8-20 mm

Position indication

mechanical with   pointer

Service life

> 100 000 cycles   (0°...95°...0°)

Safety

Protection class

III (safety extra-low voltage)

Protection class   auxiliary switch

II (double insulation)

Degree of protection

IP 54 (cable   downwards)

EMC

CE (2014/30/EU)

LVD

CE (2014/35/EU)

RoHS

CE (2011/65/EU -   2015/863/EU - 2017/2102/EU)

Mode of operation

Typ 1 (EN 60730-1)

Rated impulse voltage   supply / control

0,8 kV (EN 60730-1)

Rated impulse voltage   auxiliary switch

4 kV (EN 60730-1)

Control pollution   degree

3 (EN 60730-1)

Ambient temperature   normal operation

-30°C...+50°C

Storage temperature

-30°C...+80°C

Ambient humidity

5...95% r.H., non   condensing (EN 60730-1)

Maintenance

maintenance free

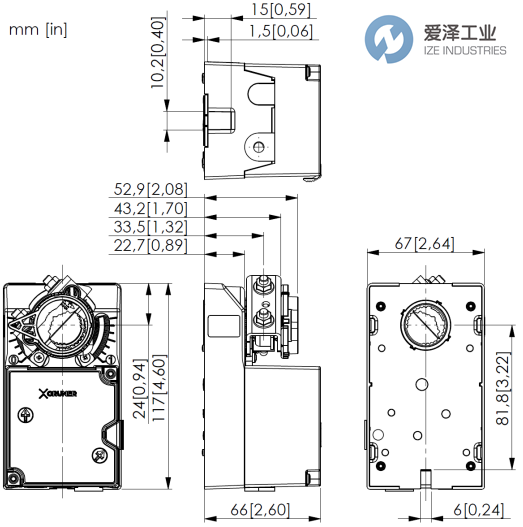

Dimensions / Weight

Dimensions

117 x 67 x 66 mm

Weight

510 g
