CATALFER打磨机产品介绍

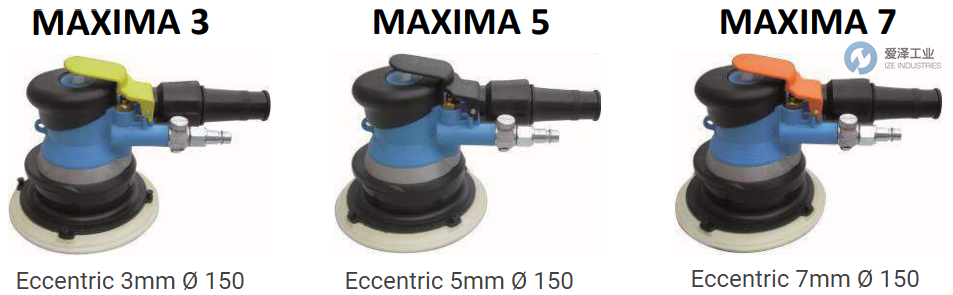

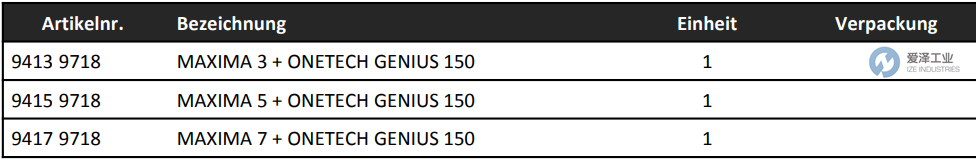

CATALFER打磨机MAXIMA / MAXIMA OS系列介绍及选型

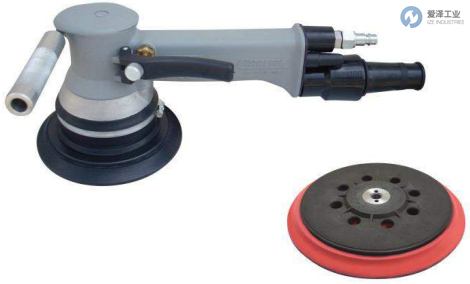

压缩空气打磨系统 Maxima、Maxima OS、AIRFLUX 带集成抽吸功能。凭借获得专利的“Airflux”循环,纯净的压缩空气在驱动砂垫后,将排出的空气转化为真空,将所有砂尘压入吸尘软管。将背垫完全放置在待加工表面上后,可 99% 去除由此产生的打磨粉尘。工作站设备允许存放砂轮和所有其他必要的工作设备。
The compressed air sanding system Maxima, Maxima OS, AIRFLUX with integrated extraction. With the patented "Airflux" cycle, the pure compressed air, after driving the sanding pad, the exiting air is converted into a vacuum, which presses all the sanding dust into the suction hose. With a complete placement of the backing pad on the surface to be processed, 99% extraction of the resulting sanding dust. The workstation equipment allows storage of grinding wheels and all other necessary work equipment.
CATALFER打磨机STRATOS AIRFLUX系列介绍及选型
无尘、气动齿轮旋转磨床,适用于大磨削去除。 可与ONETECH和HELAN砂轮配套使用。
STRATOS AIRFLUX可用于需要大量打磨的地方。通过其旋转力和自动吸力(无尘工作环境),延长了砂轮的使用寿命和可用性。STRATOS 替代了昂贵的系统,因为它是一种气动旋转打磨机,特别适用于打磨铝材,因为没有电缆,没有电波和爆炸的危险。
Dust-free, air-powered geared rotary grinder, suitable for a large grinding removal. Can be used with ONETECH and HELAN grinding wheels.
STRATOS AIRFLUX can be used where very large removal of grinding is necessary. Through its rotational force and automatic extraction (dust-free working environment), extended life and use of the grinding disc. Stratos replaces expensive systems because it is an air-powered rotary grinder, particularly suitable for sanding aluminum as there are no electric cables. No radio and explosion hazard.

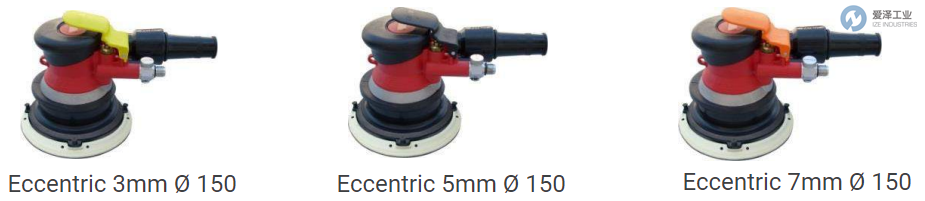

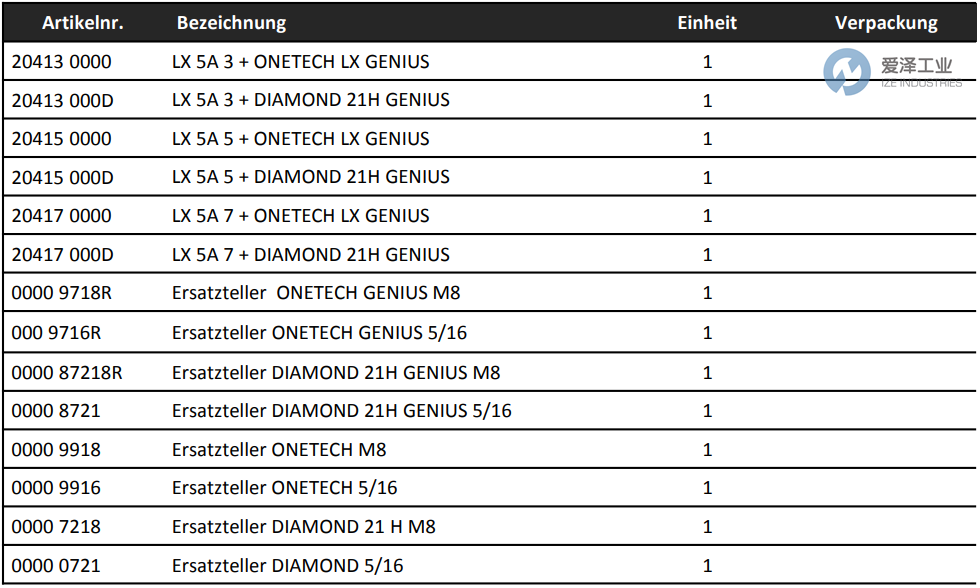

CATALFER打磨机MAXIMA LX 5A系列介绍及选型
压缩空气驱动偏心装置
• 可直接连接到中央提取和移动提取
• 易于操作
• 动力强劲、耗气量低的空气发动机
• 适用于任何类型的表面处理
• 轴承双重防尘
• 工作压力 (4-5 BAR)
Compressed air driven eccentric
• direct connection to central extraction and mobile extraction possible
• easy handling
• powerful, low air consumption air engine
• ideal for any kind of surface preparation
• the bearing is double protected against dust
• operating pressure (4-5 bar)

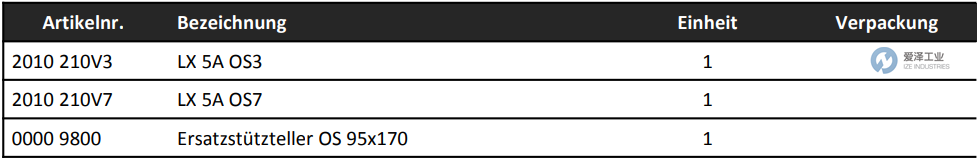

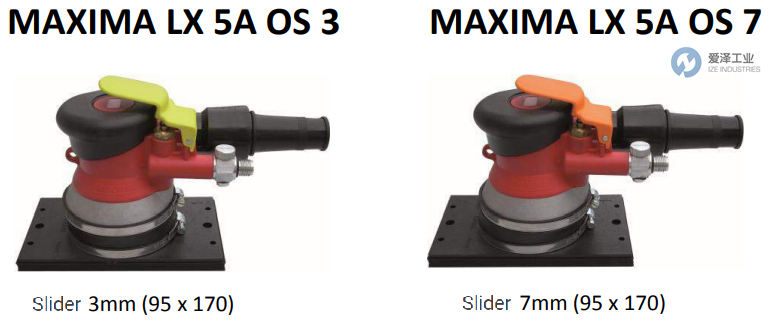

CATALFER打磨机MAXIMA LX 5A OS系列介绍及选型
轨道气动研磨机
一种压缩空气驱动的随机轨道打磨机,耗气量低,适用于移动系统和中央抽气系统。
• 可直接连接到中央提取
• 易于操作
• 动力强劲、耗气量低的空气发动机
• 适用于任何类型的表面处理
• 轴承双重防尘
• 工作压力 (4-5 BAR)
Orbital air powered grinder
A compressed air driven random orbit sander with low air consumption for operation on mobile systems and on central extraction.
• direct connection to central extraction possible
• easy handling
• powerful, low air consumption air engine
• ideal for any kind of surface preparation
• the bearing is double protected against dust
• operating pressure (4-5 bar)

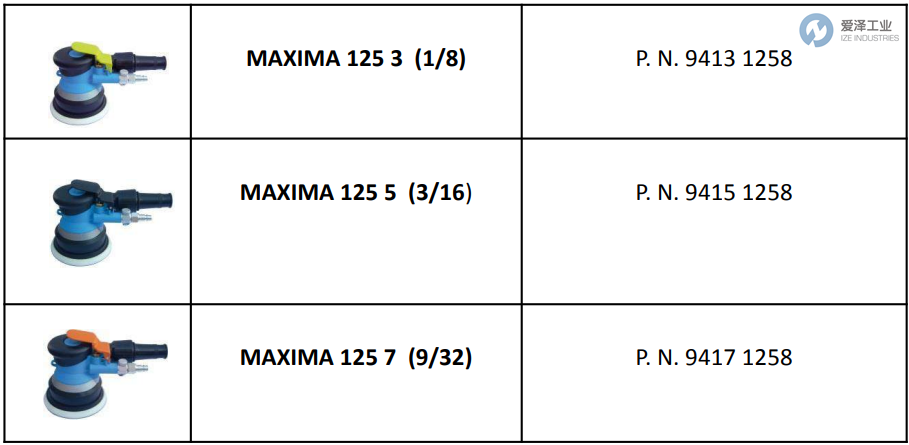

CATALFER打磨机MAXIMA Ø 125系列介绍及选型
带自动吸力
With automatic suction

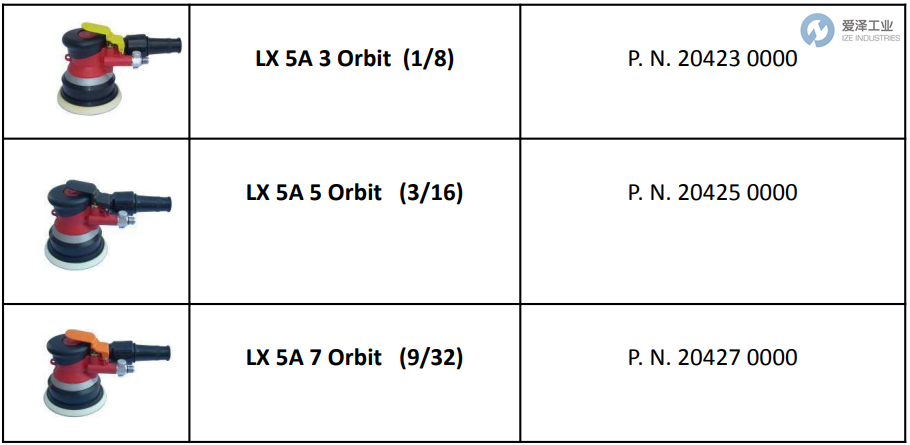

CATALFER打磨机LX 5A Ø 125系列介绍及选型
气动打磨机(不带自动吸风)
Pneumatic grinding machine (without automatic suction)

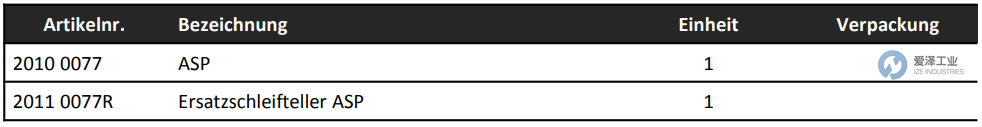

CATALFER打磨机ASP Ø 75系列介绍及选型
用于 SPOTREPAIR 的气动轨道打磨机
技术规格:
重量:600 克。
工作压力:6 bar
转速:rpm 15’000
行程:2.5mm
特征:
• 无振动和噪音
• 易于操作
• 强大的气动引擎
• 适用于任何类型的表面处理
Air-powered orbital sander for spotrepair
Technical specifications:
Weight: 600 gr.
Working pressure: 6 bar
Speed: rpm 15’000
Stroke: 2.5mm
Characteristics:
• No vibration and noise
• Easy handling
• Powerful air powered engine
• Ideal for any kind of surface preparation

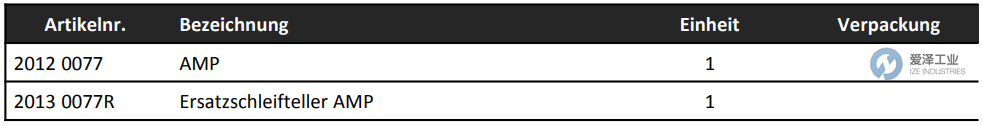

CATALFER打磨机AMP Ø 75系列介绍及选型
气动旋转抛光机
技术规格:
重量:600 克。
工作压力:6 bar
速度:每分钟 2'500
特征:
• 无振动和噪音
• 易于操作
• 强大的气动发动机
• 适用于所有类型的抛光
Air-powered rotary polishing machine
Technical specifications:
Weight: 600 gr.
Working pressure: 6 bar
Speed: rpm 2'500
Characteristics:
• No vibration and noise
• Easy handling
• Powerful air powered engine
• Ideal for all types of polishing

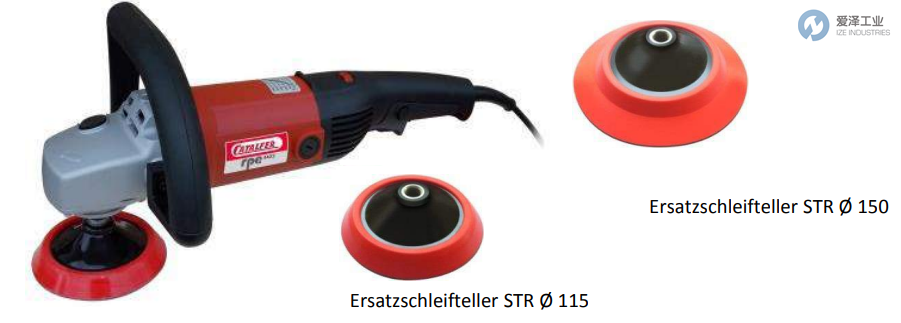

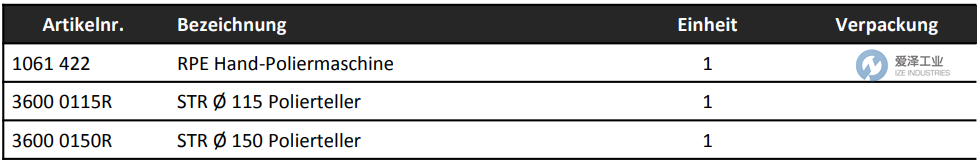

CATALFER打磨机RPE系列介绍及选型
带速度控制的电动手动抛光机。 (提供标准研磨盘 STR Ø 115)
技术规格:
重量:3KG
速度6级
功率 1300W
转速:400-2200转
特征:
• 可与 Ø 115 和 Ø 150 的磨垫一起使用
• 无振动和噪音
• 易于操作
• 强大的电动马达
• 适用于任何类型的表面处理
Electrically operated hand polishing machine with speed control. (Supplied with standard grinding disc STR Ø 115)
Technical specifications:
Weight: 3KG
Speed 6 levels
Power 1300W
Speed: 400-2200 rpm
Characteristics:
• Can be used with sanding pads ø 115 & ø 150
• No vibration and noise
• Easy handling
• Powerful electric motor
• Ideal for any kind of surface preparation
