OIL CONTROL成立于1974年(现被博士力士乐收购），在意大利工业领域运动控制阀移动机械市场占有很高的市场容量，且业绩在汽车和工程机械行业迅速增长。今天的OIL CONTROL公司，已是移动设备与机械领域的阀门优质供应商，可以提供1600种不同类型的阀门生产与设计。
REXROTH OIL CONTROL的主要产品有：换向阀，止回阀，电磁阀，平衡阀，球阀，插装阀，单向阀，溢流阀，行程阀，驱动阀，安全阀，阀组，阀块，电磁阀线圈，流量计等等
Technical data | |
General | |
Weight | 0.13 kg (0.29 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | |
Max. operating pressure up to | 280 bar (4060 psi) * |
Max. fl ow | up to 20 l/min (5 gpm) |
Max. internal leakage at 230 bar | 40 cm3/min. (2.4 cu.in/min.) |
Fatigue cycle life | 1 million cycles at 250 bar |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 34 - 39 Nm (25 - 29 ft-lbs) |
Recommended degree of fl uid contamination | Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14 |
MTTFd | 150 years see RE 18350-51 |
Cavity | CA-08A-3N |
Seal kit | code RG08A3010530100 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Admitted voltage tolerance: | -10% / +25% of nominal voltage at 60°C amb. T |
Power consumption | 20 W |

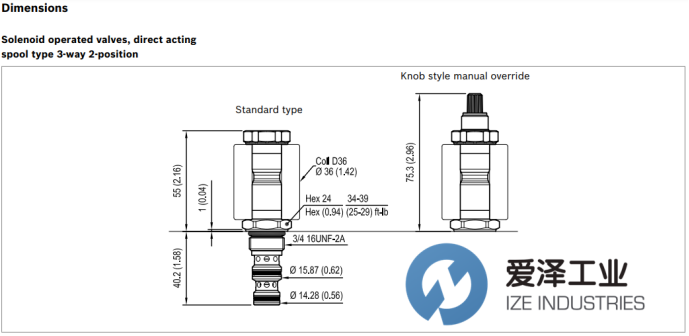

REXROTH阀VED-16-08A-32系列技术尺寸

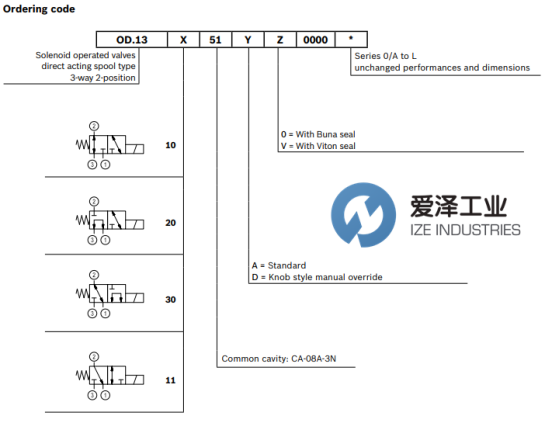

REXROTH阀VED-16-08A-32系列选型
REXROTH阀VED-16-08A-32系列其他常用型号：
REXROTH OD131051A000000 R930058342
REXROTH OD131051D000000 R930058707
REXROTH OD131151A000000 R930058704
REXROTH OD131151D000000 R930058708
REXROTH OD132051A000000 R930058703
REXROTH OD132051D000000 R930058709
REXROTH OD133051A000000 R930058702
REXROTH OD133051D000000 R930058710
REXROTH Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH阀OD131151D000000 R930058708的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH阀OD131151D000000 R930058708技术参数
