FOXBORO现为法国Schneider旗下品牌，主要制造工业控制及过程自动化中的相关仪表。
FOXBORO PH/ORP传感器871PH-3F1A-3BT技术参数
Series | 871PH = Rebuildable Style pH/ORP Sensor |
Sensor Body Material and Diagnostic Configuration | 3 = Ryton, Intelligent Configuration, Integral 6 m (20 ft) Cable, Integral Preamplifier (b) |
Measuring Electrode and Body Material | F = Flat Ruggedized Glass, pH, Ryton (c) |
Sensor Wetted Metallic Parts Material | 1 = AISI Type 316L Stainless Steel (316L ss) |
Reference Junction and Body Material | A = Ceramic, Ryton A |
Optional Selections Cable; Integral to Sensor; Standard and High Temperature | 3 = Nonstandard Integral Cable Length, standard temperature at 85°C (185°F);(not available with Option -Q) (d) |
Variopin Quick Connector on Integral Cable or Sensor Body | B = Integral Cable Terminated w/Variopin Quick Connector (not available with Options -4, -5, -7) (f)(j) |
Miscellaneous Optional Selections | T = ptfe Collar |
FOXBORO PH/ORP传感器871PH系列介绍
871PH 传感器与 Foxboro 870PH 和 870ITPH 变送器以及 873PH、873APH、873DPX 和 875PH 分析仪配合使用。 871PH 传感器只需一个基本传感器即可实现多种用途。 该传感器使用多个电极之一作为敏感元件，并使用润湿的、不流动的陶瓷盘作为主要参比接点。 这些元件安装在带有温度补偿装置的传感器组件主体内。
The 871PH Sensor is used with Foxboro 870PH and 870ITPH Transmitters and 873PH, 873APH, 873DPX, and 875PH Analyzers. The 871PH Sensor permits multiple-purpose use with only one basic sensor. The sensor uses one of several electrodes as the sensitive element and a wetted, nonflowing ceramic disc as the primary reference junction. These components are mounted in the body of the sensor assembly with a temperature compensating device.

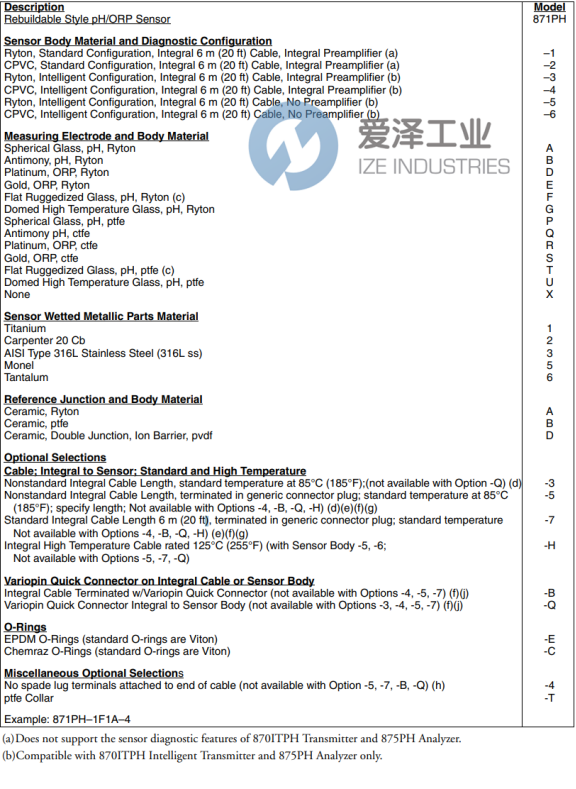

FOXBORO PH/ORP传感器871PH系列选型
FOXBORO PH/ORP传感器871PH系列其他常用型号：
FOXBORO 871PH-3F1A-3BT
FOXBORO 871PH-3F1A
FOXBORO 871PH-1A1A
FOXBORO 871PH-5A6A-3
FOXBORO 871PH-5P1A-4
FOXBORO 871PH-1A3A
FOXBORO 871PH-3B5B-3
FOXBORO 871PH-1A1A-4
FOXBORO 871PH-1F1A-3PH
FOXBORO 871PH-6P1B
FOXBORO PH/ORP FOXBORO 传感器871PH系列 NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于FOXBORO PH/ORP传感器871PH-3F1A-3BT的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for FOXBORO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
FOXBORO PH/ORP传感器871PH系列871PH-3F1A-3BT技术参数及选型
