General

Weight

0.20 kg (0.44 lbs)

Installation orientation

Unrestricted

Storage ambient temperature range

-40 to 100 °C (-40 to 212 °F)

Operating ambient temperature range

-30 to 90 °C (-22 to 194 °F)

Salt spray test to DIN EN ISO 9227:2017-07

500h

Hydraulic

Max. operating pressure

350 bar (5000 psi)

Rated flow

1.5 l/min (0.4 gpm)

Max. internal leakage:

20 drops/min.

Switching time

Closing ≤ 100 ms
Opening ≤ 50 ms

Fluid temperature range

-20 to 80 °C (-4 to 176 °F)

Fluids:

Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt)

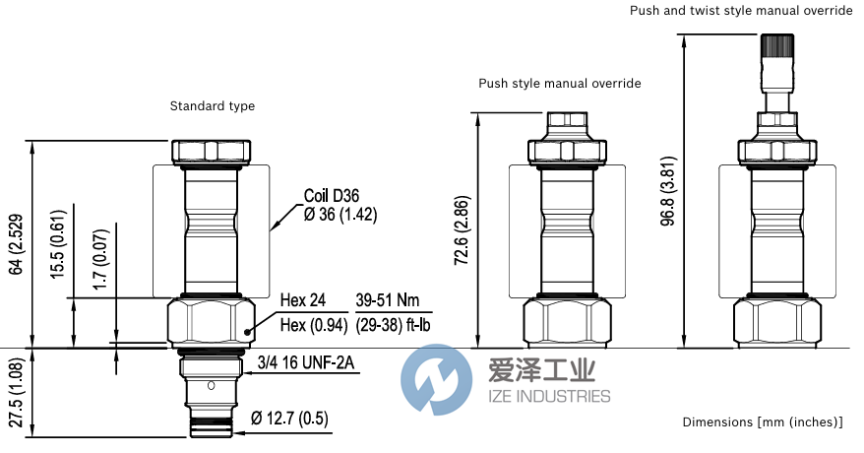

Installation torque

39 - 51 Nm (29 - 38 ft-lbs)

Recommended degree of fluid contamination

Nominal value max. 10 μm (NAS 8) ISO 4406 19/17/14

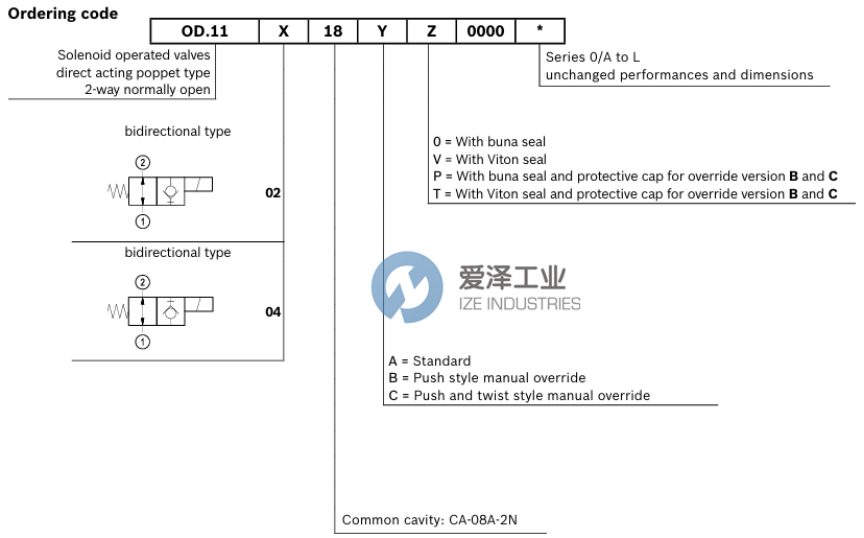

Seal kit for X=02,04

code RG08A2010520100
material no. R901101437

Seal kit coil and standard cap

code RG02Z0010000100
material no. R930067869

Seal kit coil and protective cap only for Y=B

code RG03Z0010000100
material no. R930067870

Seal kit coil and protective cap only for Y=C

code RG04Z0010000100
material no. R930069171

Electrical

Type of voltage

DC voltage

Coil type

D36

Power consumption

20 W
