爱泽工业2022年7月部分到货产品专题及库存
——SAMSON篇
如下为我司爱泽工业IZE_Industries本月到货SAMSON相关产品,欢迎致电索取样本资料和产品信息。
SAMSON定位器3725-0000000000.00
SAMSON定位器3730-31000000400000009.04
SAMSON维修包1400-6792
SAMSON转换器6109-100101000000

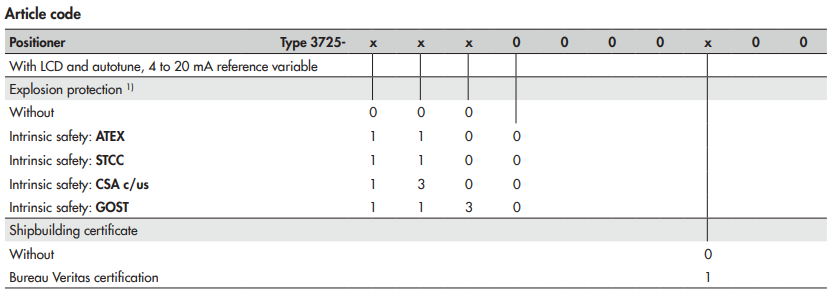

SAMSON定位器3725系列介绍及选型
特殊功能
− 电动气动定位器
− PPA材质外壳
− 根据 IEC 60534-6 或 SAMSON 整体附件连接到线性执行器
− 根据 VDI/VDE 3845 连接到旋转执行器
− 使用 3710 型换向放大器连接到双作用执行器
− 使用三个电容键,通过直观的导航菜单轻松操作
− 由于可旋转的阅读方向,在任何安装位置都易于阅读
− 变量自动启动
− 预设参数
− 所有参数保存在非易失性 EEPROM 中
− 可启动紧闭功能
− 自动零位监控
− 非接触式位置感应
− 不受环境影响和蒸汽锤击的影响
Special features
− Electropneumatic positioner
− Housing of polyphthalamide
− Attachment to linear actuators according to IEC 60534-6 or SAMSON integral attachment
− Attachment to rotary actuators according to VDI/VDE 3845
− Attachment to double-acting actuators with Type 3710 Reversing Amplifier
− Easy operation with intuitive navigation menu using three capacitive keys
− Easy-to-read display in any mounting position thanks to rotatable reading direction
− Variable automatic start-up
− Preset parameters
− All parameters saved in non-volatile EEPROM
− Tight-closing function can be activated
− Automatic zero monitoring
− Non-contact position sensing
− Unaffected by environmental effects and steam hammeringy

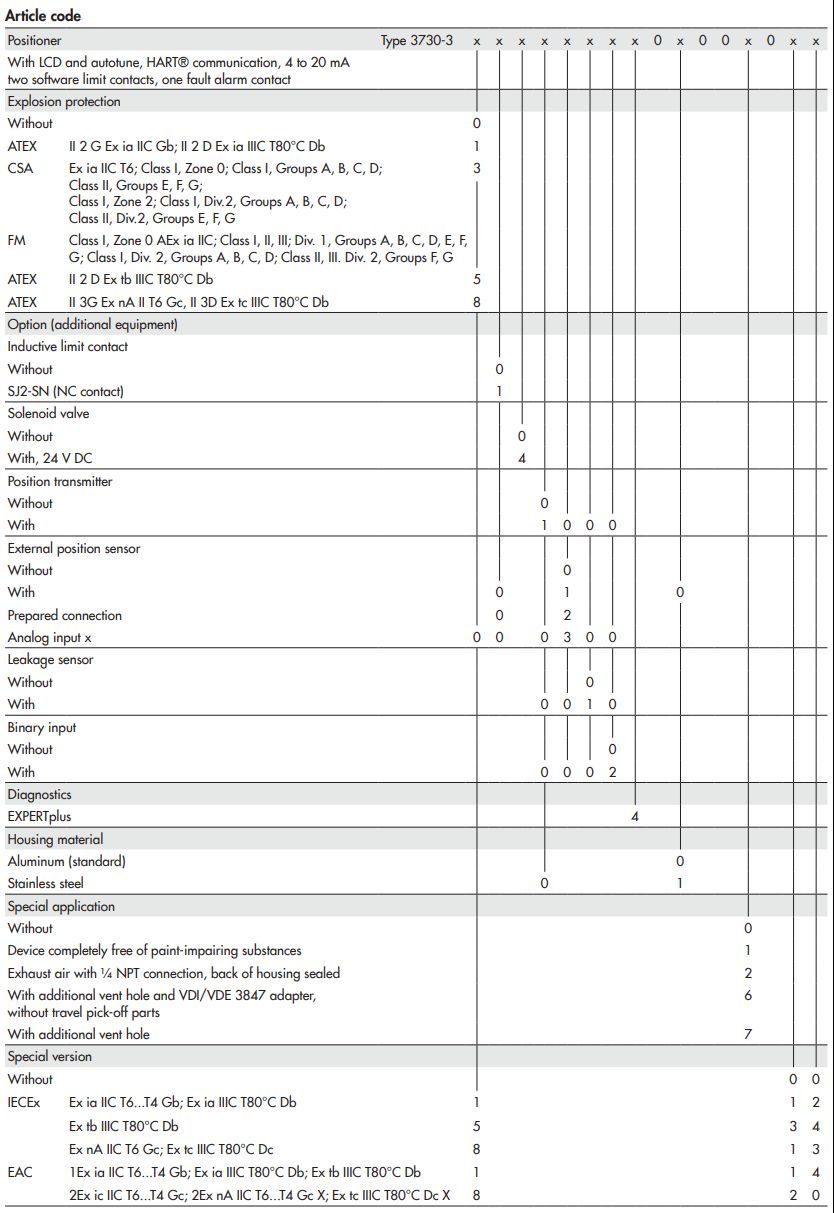

SAMSON定位器3730-3系列介绍及选型
特殊功能
− 带 HART® 通讯的电动气动定位器
− SAM 数字就绪
− 压铸铝或不锈钢外壳
− 根据 IEC 60534-6、VDI/VDE 3847 或 SAMSON 一体式附件连接到线性执行器
− 根据 VDI/VDE 3845 连接到旋转执行器
− 使用 3710 型换向放大器连接到双作用执行器
− 用于控制阀的集成 EXPERTplus 诊断
− 定位器的任何所需安装位置(但不悬挂)
− 简单的一键式菜单驱动操作
− 由于可旋转的阅读方向,在任何安装位置都易于阅读
− 可使用 TROVIS-VIEW 软件通过 SSP 接口与计算机进行配置
− 由于四种不同的初始化模式,可变自动启动
− 预设参数,只有偏离标准的值需要调整
− 校准的行程传感器,没有易磨损的齿轮
− 子(替代)初始化模式允许定位器在紧急情况下在工厂运行时启动,而无需更改阀门位置。
− 所有参数保存在非易失性 EEPROM 中
− 具有 410 Ω 小电气负载的两线制系统
− 可调输出压力限制
− 可调紧闭功能
− 自动零位监控
− 集成温度传感器和运行时间计数器
− 两个标准可编程位置警报
− 自我诊断
− 符合 NAMUR 建议 NE 107 的浓缩状态消息,通过故障报警触点或可选的模拟位置变送器发出
− DTM 文件可用于根据规范 1.2 集成到 FDT 框架应用程序中

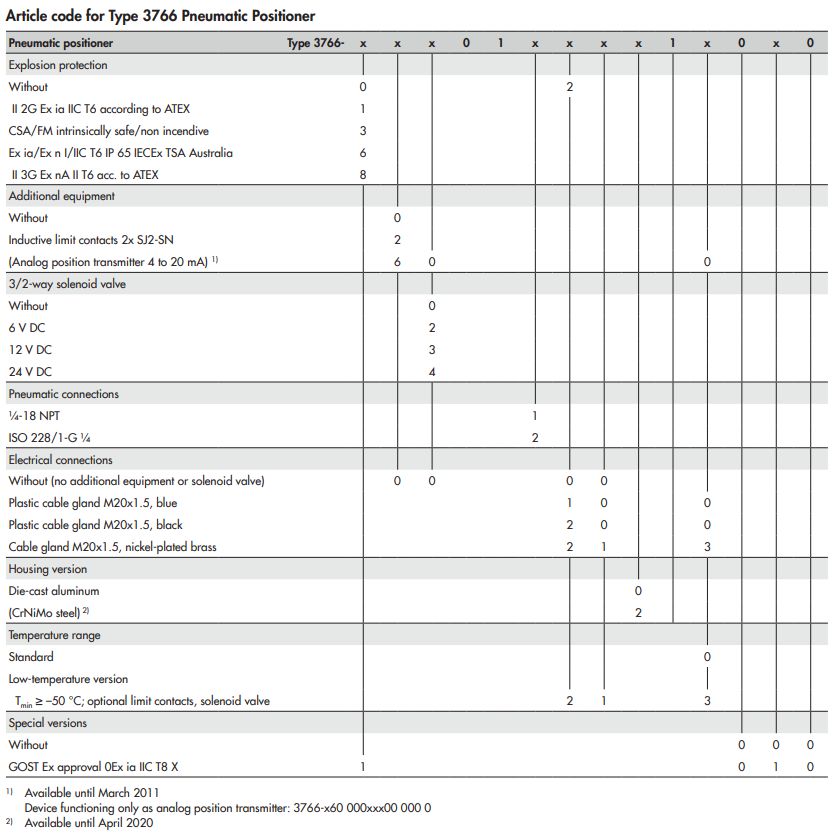

SAMSON定位器3766系列介绍及选型
特殊功能
− 气动或电动气动定位器
− 带 6116 型 i/p 转换器的电动气动定位器版本
− 压铸铝或不锈钢外壳
− 根据 IEC 60534-6 或 SAMSON 整体附件连接到线性执行器
− 根据 VDI/VDE 3845 连接到旋转执行器
− 紧凑、低维护的设计
− 任何可能的安装位置
− 对机械振动不敏感
− 可逆的作用方向
− 出色的动态响应
− 正常和分程操作
− 可调比例 (P) 带
− 出风量可调
− 送风量低
Special features
− Pneumatic or electropneumatic positioner
− Version as electropneumatic positioner with Type 6116 i/p Converter
− Die-cast aluminum or stainless steel housing
− Attachment to linear actuators according to IEC 60534-6 or SAMSON integral attachment
− Attachment to rotary actuators according to VDI/VDE 3845
− Compact, low-maintenance design
− Any mounting position possible
− Insensitive to mechanical vibrations
− Reversible direction of action
− Excellent dynamic response
− Normal and split-range operation
− Adjustable proportional (P) band
− Adjustable air output capacity
− Low supply air consumption

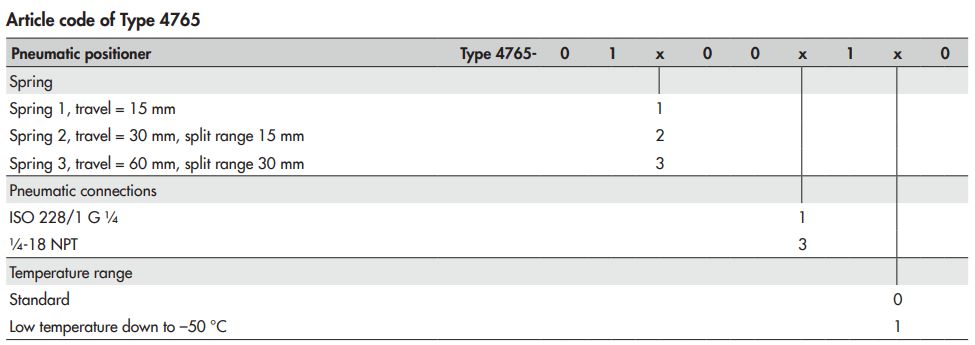

SAMSON定位器4765系列介绍及选型
特殊功能
− 气动定位器
− 压铸铝外壳
− 根据 IEC 60534-6 连接到线性执行器
− 紧凑、低维护的设计
− 任何可能的安装位置
− 对机械振动不敏感
− 可逆的作用方向
− 出色的动态响应
− 正常和分程操作
− 可调比例 (P) 带
− 出风量可调
− 送风量低
Special features
− Pneumatic positioner
− Die-cast aluminum housing
− Attachment to linear actuators according to IEC 60534-6
− Compact, low-maintenance design
− Any mounting position possible
− Insensitive to mechanical vibrations
− Reversible direction of action
− Excellent dynamic response
− Normal and split-range operation
− Adjustable proportional (P) band
− Adjustable air output capacity
− Low supply air consumption

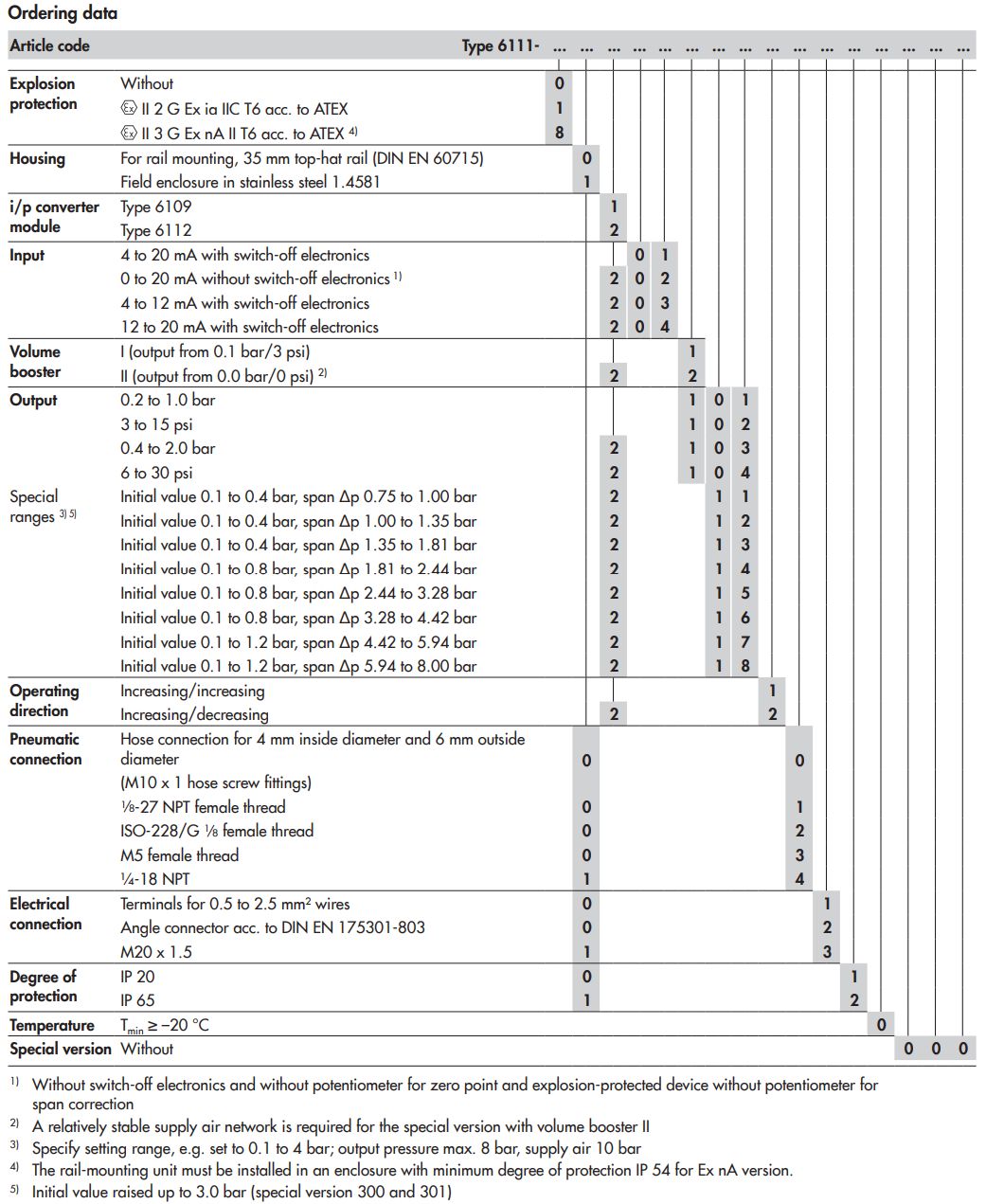

SAMSON转换器6111系列介绍及选型
特殊功能
− i/p 转换器
− 轻松更换 i/p 模块
− 当关闭电子设备被激活时,在特定 mA 值处归零
− 无需上游压力调节器即可运行
− 塑料外壳
Special features
− i/p converter
− Easy replacement of i/p module
− Zero reset at specific mA value when switch-off electronics are activated
− Operation possible without an upstream pressure regulator
− Plastic housing
SAMSON定位器/转换器/维修包常用型号:
SAMSON 3730-310000
SAMSON 3730-31001000400000009.04
SAMSON 3730-3100000040000009.01
SAMSON 3725-1100
SAMSON 3725-113
SAMSON 3725-130
SAMSON 3725-11
SAMSON 3725-0000000000.00
SAMSON 3766-00001100010000.06
SAMSON 3766-0000110000.01
SAMSON 4765-0110031.02
SAMSON 4765-0130011.03
SAMSON 4765-01200110000.03
SAMSON 1400-6792
SAMSON 1400-6797
SAMSON 1400-6798
SAMSON 6109-100101000000
SAMSON 6111-0020121712210000.00
如果您需要完整的SAMSON相关技术咨询,请随时致电爱泽工业(021-3100 6702),或者访问网站www.ize-industries.com,我们将尽全力解决您的问题。
If you have any question for SAMSON,please feel free to dial 0086-21-3100 6702 or browse our website: www.ize-industries.com.
