REXROTH阀VEI-16-08S-NC系列技术参数
Technical data | |
General | |
Weight | 0.15 kg (0.33 lbs) |
Installation orientation | Unrestricted |
Storage ambient temperature range | -40 to 100 °C (-40 to 212 °F) |
Operating ambient temperature range | -30 to 90 °C (-22 to 194 °F) |
Salt spray test to DIN EN ISO 9227:2017-07 | 500h |
Hydraulic | |
Max. operating pressure | 350 bar (5000 psi) |
Flow range | 0.5 - 40 l/min (0.1 - 11 gpm) |
Fatigue cycle life | 2 million cycles at 350 bar |
Max. internal leakage | 5 drops/min. |
Switching time | Opening ≤ 50 ms |
Fluid temperature range | -20 to 80 °C (-4 to 176 °F) |
Fluids: | Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm2/s (cSt) |
Installation torque | 35 - 43 Nm (26 - 32 ft-lbs) |
Recommended degree of fluid contamination | Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14 |
Special cavity | 019-E see 18325-75 |
Seal kit for X=01,05,07 | code RG19E201052010 |
Seal kit for X=11,13 | code RG19E201053010 |
Seal kit coil and standard cap | code RG02Z0010000100 |
Seal kit coil and protective cap only for Y=D | code RG03Z0010000100 |
Electrical | |
Type of voltage | DC voltage |
Coil type | D36 |
Power consumption | 20 W |

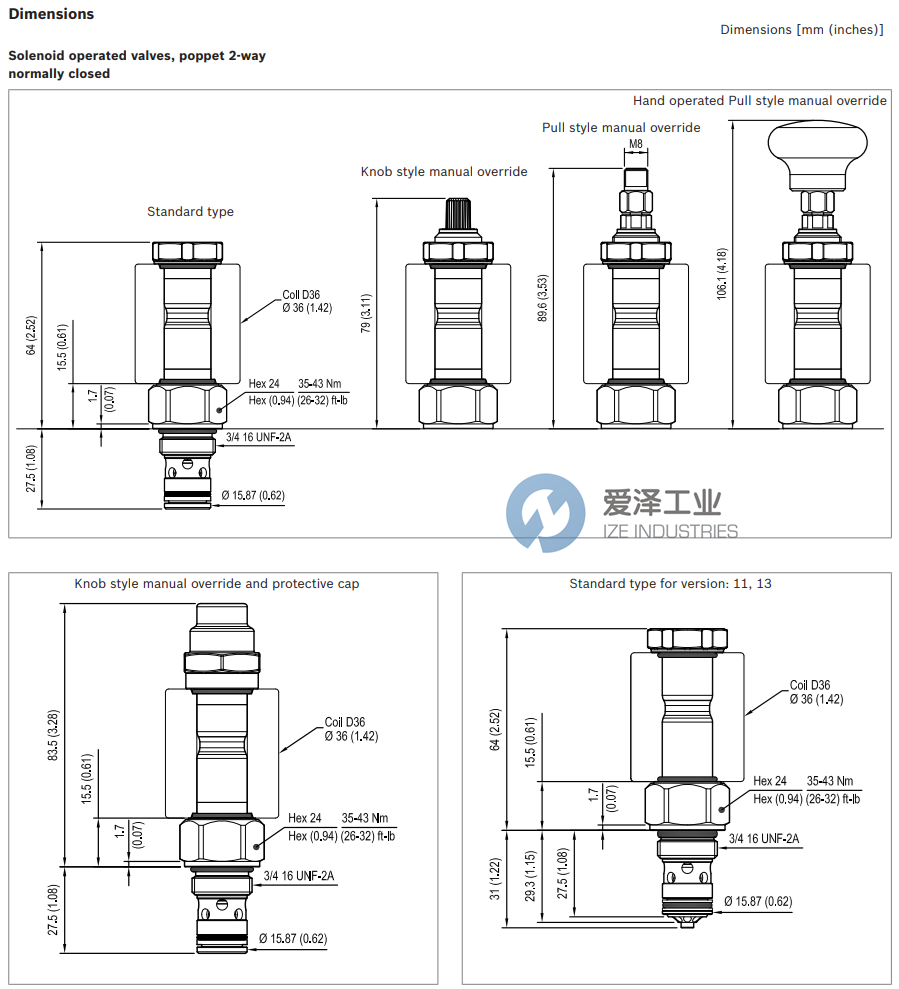

REXROTH阀VEI-16-08S-NC系列技术尺寸
REXROTH阀VEI-16-08S-NC系列选型
REXROTH阀VEI-16-08S-NC系列其他常用型号：
REXROTH OD150519A000000 R930058433
REXROTH OD150519DP00000 R930058531
REXROTH OD150719A000000 R930058431
REXROTH OD150719DP00000 R930058530
REXROTH OD151119A000000 R930060459
REXROTH OD151319A000000 R930058333
REXROTH OD151319D000000 R930058343
REXROTH OD150119E000000 R930060857
REXROTH OD150519E000000 R930060865
REXROTH OD150719E000000 R930060872
REXROTH OD151119E000000 R930060882
REXROTH OD151319E000000 R930060890
REXROTH OD151119A800000 R930068881
REXROTH OD151119AV00000 R930060876
