S+S温度传感器ATM 2 - ETHERCATP系列介绍
ON-WALL/ OUTDOOR-/ WET ROOM TEMPERATURE
MEASURING TRANSDUCERS THERMASGARD® ATM 2 - ETHERCAT P
Interconnective THERMASGARD® ATM2 - EtherCAT P outside temperature measuring transducer with M8 plug-in connector (EtherCATP-encoded), Bluetooth-enabled, in an impact resistant plastic housing with quick-locking screws, optionally with/without display and bar graph.
The on-wall sensor serves to detect the temperature in gaseous media. It is used outdoors or in wet rooms, in cold storage buildings and greenhouses, in the industrial sector and in agriculture. Installation on outside walls is preferably performed on the north side or in a protected place. In cases of direct solar irradiation, a WS 03 (accessory) weather and sun protection hood (accessory) should be used. The sensor is factory-calibrated.
EtherCATP-enabled measuring transducer for industrial requirements with maximum reliability: includes easy PLC integration using the devices ESI configuration file, diagnostics (such as communication failure counter), advanced setting options, access to historical data (min/max) and sensor service interval determination. Optionally with large back-lit three-line display (customised programming in the 7-segment and dot-matrix ranges and bar graph (7-digit, LEDs freely configurable) for graphical display, e.g. as a traffic light indicator.
壁挂式/室外-/湿室温度
测量传感器 THERMASGARD® ATM 2 - ETHERCAT P
互连 THERMASGARD® ATM2 - EtherCAT P 外部温度测量传感器，带 M8 插入式连接器（EtherCATP 编码），支持蓝牙，在带快速锁定螺钉的抗冲击塑料外壳中，可选择带/不带显示器和条形图。
壁挂式传感器用于检测气体介质中的温度。它用于室外或潮湿的房间、冷藏建筑和温室、工业部门和农业。外墙安装最好在北侧或受保护的地方进行。在直接太阳照射的情况下，应使用 WS 03（附件）天气和防晒罩（附件）。传感器经过工厂校准。
支持 EtherCATP 的测量传感器可满足工业要求，具有最高可靠性：包括使用设备 ESI 配置文件轻松集成 PLC、诊断（例如通信故障计数器）、高级设置选项、访问历史数据（最小/最大）和传感器服务间隔确定.可选配大型背光三行显示屏（7 段和点阵范围内的定制编程和条形图（7 位，LED 可自由配置）用于图形显示，例如作为交通灯指示器。

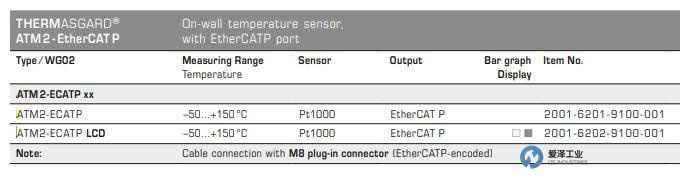

S+S温度传感器ATM2-ECATP选型
S+S温度传感器其他常用型号：
S+S ATM2-ECATP
S+S ATM2-ECATP LED
S+S sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于S+S温度传感器ATM2-ECATP的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for S+S products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
