HONEYWELL限位开关HDLS LSY-FP系列技术参数
Characteristic | Parameter |
Product type | MICRO SWITCH heavy-duty epoxy encapsulated limit switches |
Certifications | UL, CSA, CE |
Reference standards | UL508, CSA C22.2 # 14, EN/IEC 60947-5-1 |
Housing material | Electrostatic epoxy coated zinc |
Actuator heads | Side plunger - adjustable Side plunger - pin Side plunger maintained - pin |
Termination | SPDT: 5 conductor STOOW-A PVC cable Ø12,7 mm [0.5 in] or 5-pin mini-style connector |
Contact options | 1NC/1NO, 2NC/2NO, 2NC/2NO center neutral, 2NC/2NO sequential |
Contact type | Snap action double break (form Za); same polarity each pole |
Contact material | Silver alloy (standard), gold-plated (low-energy applications) |
Utilization category | AC15, A600; DC13, R300 |
Rated operational voltage (Ue) | 600 Vac, 250 Vdc |
Rated operational current (Ie) | 1.2 A, 0.1 A |
Rated thermal current (Ith) | 10 A, 2.5 A |
Rated insulation voltage (Ui) | 600 V |
Rated impulse withstand voltage (Uimp) | 2500 V |
Short circuit protection device (SCPD) type and rating | Class J fuse, rated 10 A, 600 V |
Pollution degree | 3 |
Sealing | STOOW-A cable: IP65/66/67, NEMA 1, 3, 3R, 4, 6, 6P, 12, 13 |
Operating temperature | Refer to table 5 on page 7 for limit switch |
Vibration | 10 g, conforming to IEC60068-2-6 |
Shock (actuator not fitted) | 50 g, conforming to IEC60068-2-27 |
HONEYWELL限位开关HDLS LSY-FP系列介绍
描述
LSY-FP 系列限位开关采用与已使用 40 多年的 HDLS（重型限位开关）相同的坚固压铸金属外壳和密封件。 限位开关的金属主体采用环氧树脂封装，以防止灰尘或液体迁移到内部开关触点，这是恶劣环境条件下的首选。
LSY-FP 系列限位开关可提供各种带单极或双极触点块的执行头。 限位开关预接线有 PVC 工业级 STOOW-A 电缆（耐油和户外耐候环境）或一体式迷你型连接器。
为获得全球认可，LSY-FP 系列限位开关包括 CE、CSA 和 UL 认证。
特征
• 带有一体式电缆或连接器的环氧树脂封装主体
• 环境密封； IP 65/66/67 和 NEMA 1、3、3R、4、6、6P、12 和 13（带迷你型连接器）； IP 65/66/67 和 NEMA 1、3、3R、4、6、6P 和 12（带 STOOW-A 电缆）
• 坚固的耐腐蚀金属锌头和阀体经过磷酸盐处理和环氧树脂涂层
• 头部和主体之间的隔膜密封提供了额外的密封措施
• 用于化学恶劣环境的碳氟化合物密封件或用于低温应用的氟硅酮密封件
• 执行器头可以现场调整到相隔 90° 的四个位置中的任何一个
• 旋转驱动头出厂时已针对开关的CW 和CCW 驱动进行了调整。 头部可以现场调整为仅 CW 或仅 CCW 以启动开关
• 提供 1NC/1NO 或 2NC/2NO 双断触点
• 全球认可的 CE、CSA 和 UL 认证
DESCRIPTION
The LSY-FP Series of limit switches incorporate the same rugged die-cast metal housings and seals as the HDLS (Heavy Duty Limit Switch) which have been in service for more than 40 years. The metal body of the limit switch is epoxy-encapsulated to prevent dust or liquid migrating to the internal switch contacts which is preferred for adverse environmental conditions.
The LSY-FP Series of limit switches are available with a wide variety of actuating heads with a single pole or double pole contact block. The limit switches are pre-wired with a PVC industrial grade STOOW-A cable (oil resistant and outdoor weather resistance environments) or an integral mini-style connector.
For global acceptance, the LSY-FP Series of limit switches include CE, CSA, and UL certifications.
FEATURES
• Epoxy encapsulated body with integral cable or connector
• Environmentally sealed; IP 65/66/67 and NEMA 1, 3, 3R, 4, 6, 6P, 12, and 13 (with mini-style connector); IP 65/66/67 and NEMA 1, 3, 3R, 4, 6, 6P, and 12 (with STOOW-A cable)
• Rugged corrosion-resistant metal zinc head and body are phosphate treated and epoxy coated
• Diaphragm seal between head and body provide an extra measure of sealing
• Fluorocarbon seals for chemically harsh environments or fluorosilicone seals for low temperature applications
• Actuator heads can be field adjusted to any one of four positions 90° apart
• Rotary actuated heads are factory adjusted for CW and CCW actuation of the switch. Heads can be field adjusted for CW only or CCW only to actuate switch
• Available with 1NC/1NO or 2NC/2NO double break contacts
• CE, CSA, and UL certifications for global acceptance

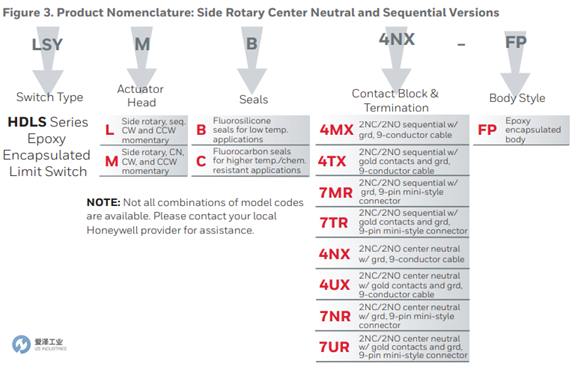

HONEYWELL限位开关HDLS LSY-FP系列选型
HONEYWELL限位开关HDLS LSY-FP系列其他常用型号：
HONEYWELL LSYAB3KQ-FP
HONEYWELL LSYAC5KP-FP
HONEYWELL LSYAC5KQ-FP
HONEYWELL LSYCC3KP-FP
HONEYWELL LSYCC3KQ-FP
HONEYWELL LSYDC3KP-FP
HONEYWELL LSYEC3KP-FP
HONEYWELL LSYJC3KQ-7AFP
HONEYWELL LSYKC3KQ-8CFP
HONEYWELL LSYL B7MR-FP
HONEYWELL LSYAC3KP-FP
