CALEX红外温度传感器PyroCouple系列技术参数
General Specifications | |
Temperature Range | -20°C to 100°C (LT models) |
Optics | Choice of optics for small or large targets at short or long distances |
Output (Measured Temperature) | Two-wire 4-20 mA (-0 models) |
Output (Sensor Body Temperature) | 4-20 mA on power loop (models with output options 1 to 4 only) |
Accuracy | ±1% of reading or ±1ºC, whichever is greater |
Repeatability | ± 0.5% of reading or ± 0.5ºC, whichever is greater |
Emissivity | Fixed at 0.95 |
Response Time, t90 | 240 ms (90% response) |
Spectral Range | 8 to 14 μm |
Supply Voltage | 24 V DC (28 V DC max.) |
Min. Sensor Voltage | 6 V DC |
Max. Loop Impedance | 900 Ω ( 4-20 mA output) |
Output Impedance | 56 Ω (voltage/thermocouple output) |
CALEX红外温度传感器PyroCouple系列介绍
• 温度范围为-20°C 至500°C
• 耐用、坚固的不锈钢 316 外壳，密封等级为 IP65
• 安装快速简便
• 2 线4-20 mA 输出或4 线电压/热电偶输出
• 为大型或小型目标选择精密光学器件
• 响应快、稳定性高
• 多种配件
• 固定发射率0.95，用于测量非反射非金属和涂漆表面（包括涂漆或涂层金属）
• 符合工业EMC标准
• Temperature ranges from -20°C to 500°C
• Durable, robust stainless steel 316 housing, sealed to IP65
• Quick and easy installation
• 2-wire 4-20 mA output or 4-wire voltage/thermocouple output
• Choice of precision optics for large or small targets
• Fast response with high stability
• Wide range of accessories
• Fixed emissivity 0.95 for measuring non-reflective non-metals, and painted surfaces (including painted or coated metals)
• Conforms to industrial EMC standards

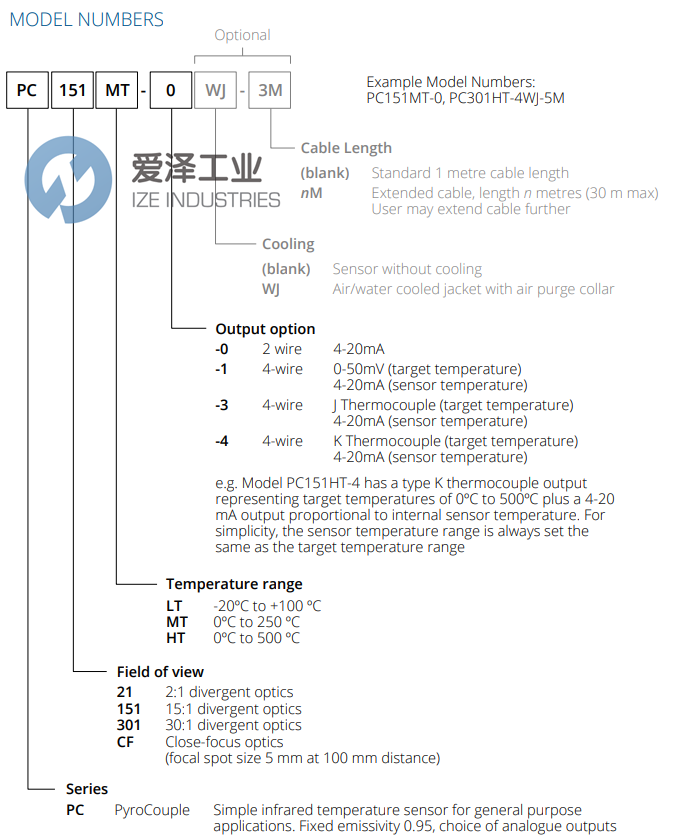

CALEX红外温度传感器PyroCouple系列选型
CALEX红外温度传感器PyroCouple系列其他常用型号：
CALEX PC151LT-0
CALEX PC151MT-0
CALEX PC151HT-0
CALEX PC21LT-0
CALEX PC21MT-0
CALEX PC21MT-4
CALEX PC301MT-0
CALEX TEMPERATURE SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于CALEX红外温度传感器PC151LT-0的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for CALEX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
CALEX红外温度传感器PyroCouple系列PC151LT-0技术参数及选型
