DUPLOMATIC流量控制阀MERS 50系列技术参数
PERFORMANCES (measured with mineral oil of viscosity 36 cSt at 50°C) | |
Maximum operating pressure | 350 bar |
Check valve cracking pressure | 0,5 bar |
Maximum flow rate in the controlled lines | 50 l/min |
Maximum flow rate in the free lines | 75 l/min |
Min. controlled flowrate with ∆p 10 bar | ≤0,060 l/min |
Ambient temperature range | -20 / +60 °C |
Fluid temperature range | -20 / +80 °C |
Fluid viscosity range | 10 ÷ 400 cSt |
Fluid contamination degree | According to ISO 4406:1999 class 20/18/15 |
Recommended viscosity | 25 cSt |
Mass | 1,3 kg |
DUPLOMATIC流量控制阀MERS系列介绍
MERS 是一种单向流量控制阀，带有用于反向自由流动的止回阀，采用可堆叠版本制造。有入口节流控制和出口节流控制两种版本。可逆版本 (MERS-G *) 配备 O 形环底板，可用于入口节流或出口节流，具体取决于阀门面对 OR 底板的方式。它配有内六角调节螺钉。
MERS is a one-way flow control valve, with non-return valve for reverse free flow, made in stackable version. There are versions both for meter-in control and for meter-out control. The reversible versions (MERS-G *) are equipped with an O-ring subplate and can be used for both meter-in or meter-out, depending on the way in which the valve is facing the OR subplate. It is supplied with a socket hex adjustment screw.

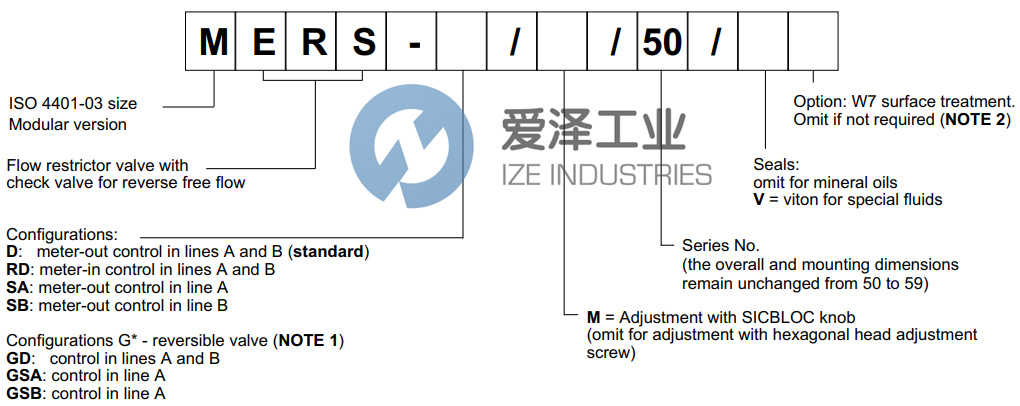

DUPLOMATIC流量控制阀MERS 50系列选型
DUPLOMATIC流量控制阀MERS系列其他常用型号：
DUPLOMATIC MERS-D/50
DUPLOMATIC MERS-SA/50
DUPLOMATIC MERS-RD//50
DUPLOMATIC MERS-SB/50
DUPLOMATIC MERS-D/50/NL
DUPLOMATIC MERS-SB/M/50
DUPLOMATIC MERS-SB/M/50/V
DUPLOMATIC MERS-GSA/M/50/V
DUPLOMATIC FLOW RESTRICTOR VALVE NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于DUPLOMATIC流量控制阀MERS-D/50的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for DUPLOMATIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
DUPLOMATIC流量控制阀MERS系列MERS-D/50技术参数及选型
