ZEVATRON烙铁头介绍（中英文）

ZEVATRON 烙铁头适用于许多应用领域的专业工作：用于电气设备或电气元件的焊接工作、用于预热较大的焊接表面、用于含铅玻璃中的焊接连接、用于焊接塑料以及许多其他应用领域。有多种标准类型可供选择。特殊版本的制造速度快且经济高效。

ZEVATRON soldering tips are supplied for professional work in many areas of application: for soldering work on electrical devices or electrical components, for preheating larger soldering surfaces, for soldering connections in leaded glazing, for welding plastics and for many other areas of application. An extensive range of standard types is available from. Special versions are manufactured quickly and cost-effectively.

特点/Advantageous to use

• 好的导热性

• 高尺寸稳定性

• 使用寿命长

• 提供免维护焊接头

• 多种类型可供选择

• Extremely good thermal conductivity

• High dimensional stability

• Long lifetime

• Maintenance-free soldering tips available

• Many types available from

技术特点/Technical features

• 由纯电解铜制成的烙铁头

• 表面防腐蚀保护

• 精确的制造品质

• 可以轻松生产客户特定的设计

• 聚四氟乙烯涂层可用于塑料焊接

• Soldering tips made from pure electrolytic copper

• Surface protection against corrosion

• Accurate manufacturing quality

• Customer-specific designs can be easily produced

• Teflon coating possible for plastic welding

焊接技巧/Soldering tips:

Zevatron 烙铁头由纯电解铜制成。这种材料确保了导热性。为了防止腐蚀，焊头完全镀镍。

Zevatron soldering tips are made from pure electrolytic copper. This material ensures the best thermal conductivity. To protect against corrosion, the soldering tips are completely nickel-plated.

技术版本/Technical versions

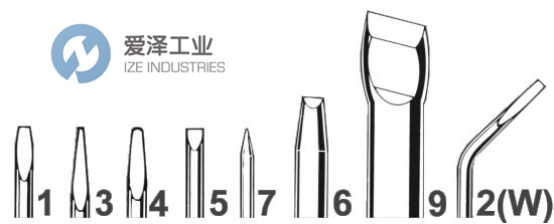

标准烙铁头直径为5；6；7.5；9.5；15；19.5 或 30 毫米。焊头长度根据温度和功率来适应各自的任务。可用的烙铁头形状如示意图所示。

The standard soldering tip diameters are 5; 6; 7.5; 9.5; 15; 19.5 or 30mm. The soldering tip lengths are adapted to the respective task in terms of temperature and power. The available shapes of soldering tips are shown in the schematic diagram.

永久焊接头/Permanent soldering tips:

Zevatron 永久烙铁头也由纯电解铜制成。通过尖端上均匀且有弹性的铁涂层，可以保护永久性焊接尖端免受焊料侵蚀和助焊剂腐蚀。烙铁头的其余部分均镀铬。焊接翅片也经过预镀锡。由于这种表面处理，永久烙铁头的使用寿命延长了 10 至 20 倍，这意味着即使长时间使用烙铁头也不需要返工。

Zevatron permanent soldering tips are also made from pure electrolytic copper. The permanent soldering tips are protected against erosion by solder and corrosion by fluxes by a homogeneous and elastic iron coating on the tip. The rest of the soldering tip is chrome plated. The soldering fin is also pre-tinned. Thanks to this surface treatment, the permanent soldering tips have a service life that is 10 to 20 times longer, meaning the tip does not need to be reworked even after long periods of use.

选择烙铁头/Choose your soldering tip:

直径，例如 15 毫米

形状，例如 1 号形状

如果拥有了 ZP 151 烙铁头。ZP 烙铁头是无铅焊接的不错选择

Diameter, e.g. 15 mm

Shape, e.g. shape no. 1

So that have the ZP 151 soldering tip. ZP soldering tips are ideal for lead-free soldering!

定制/Custom made:

Zevatron 还生产客户特定设计的烙铁头和永久烙铁头。带有尺寸的草图足以作为模板。特殊形状可以快速且经济高效地制造，因为一方面，Zevatron 在该领域拥有大量专业知识，另一方面，库存有各种直径的原材料。

Zevatron also produces soldering tips and permanent soldering tips in customer-specific special designs. A sketch with dimensions is sufficient as a template. Special shapes can be manufactured quickly and cost-effectively because, on the one hand, Zevatron has a lot of know-how in this sector and, on the other hand, raw material is stocked in all diameters.

焊接镜/Welding mirror:

对于加热和塑料焊接，ZEVATRON 提供插入烙铁中的特殊焊接镜。它们有不同的材料可供选择。它们可以裸装和涂层交付。

For heating and plastic welding, ZEVATRON supplies special welding mirrors that are inserted into the soldering iron. They are available in different materials. They can be delivered both bare and coated.
