DINEL液位计DLM-35N-40-M30-I-H-E900技术参数
Code | DLM-35N-40-M30-I-H-E900 |
Series | DLM–35 |
mech. performance: | N – non-explosive areas |
type and performance of electrode: | 40 – rod, uncoated with ref. tube, length 0.1 ... 1m |
process connection: | M30 – metric thread M30x1.5 |
type of output: | I – current (4 ... 20 mA) |
connection method: | H – plastic cable gland for protective hose (+ cable length) |
E | |
electrode length in mm | 900 |
DINEL液位计DLM-35系列介绍
用于液体和散装固体材料的连续液位测量
• 直接安装到容器、器皿、盆地、水库等中。
• 即使在不导电和不同形状的容器中也可以进行线性测量
• 通过磁笔进行简单的灵敏度设置
• LED状态及功能指示
• 通过连接器、电缆密封套或保护导体提供多种电气连接选择
• 外壳和电极棒材料为不锈钢
• Xi、XiT 版本适用于爆炸性区域，XiM、XiMT 版本适用于存在甲烷或煤尘危害风险的采矿环境
For continuos level measurement of liquid and bulk-solid materials
• Direct mounting into containers, vessels, basins, reservoirs, etc.
• Possibility of linear measurements even in non-conductive and differently shaped containers
• Simple sensitivity setting by means of magnetic pen
• LED state and function indication
• Wide choice of electric connection via connectors, cable glands or protective conductor
• Material of housing and rod electrodes from stainless steel
• Xi, XiT versions for usage in explosive areas, or XiM, XiMT versions for mining environments with a risk of hazard by methane or coal dust

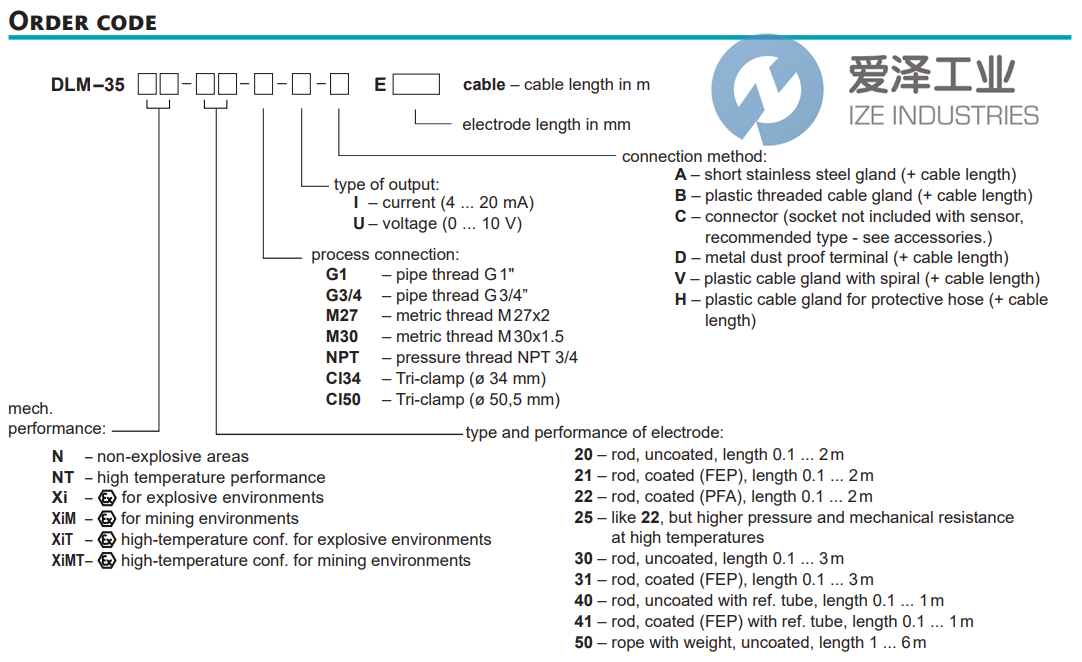

DINEL液位计DLM-35系列选型
DINEL液位计DLM-35系列其他常用型号：
DINEL DLM-35N-22-G1-I-C-E1500
DINEL DLM-35N-31-G3/4-I--E1500-K2
DINEL DLM-35N-31-G3/4-I-B-E900-K2
DINEL DLM-35N-20-G1-I-C-E0600
DINEL DLM-35N-20-G1-I-C-E1500
DINEL DLM-35N-40-NPT-I-C-E400
DINEL DLM-35Xi-21-G3/4-I-B-E300
DINEL DLM-35N-22-G1-IC-E500
DINEL DLM-35N-40-G1-I-C-E1000
DINEL DLM-35N-40-M30-I-H-E900
