SETRA压力传感器204系列技术参数
Performance data | |
Accuracy RSS1 (at constant temp) | ±0.11% FS |
Non-linearity (BFSL) | ±0.07% FS |
Hysteresis | 0.08% FS |
Non-repeatability | 0.02% FS |
Physical description | |
Pressure fittings | 1/4” -18 NPT internal |
Excitation | 22 to 30 VDC, 24 VDC (normal) Reverse excitation protected |
Output | 0 to 5 VDC5 |
Power consumption | 10 mA (0.25 Watts) |
Output impedance | <10 Ohms |
Output noise | <100 Microvolts RMS (0 Hz to KHz) |
Environmental data | |
Operating temperature3 °F(°C) | 0 to +175 (-18 to +80) |
Storage temperature °F(°C) | -65 to +250 (-55 to +120) |
Vibration | 2g from 5 Hz to 500 Hz |
Shock | 50g |
Acceleration | 10g maximum |
Thermal effects | |
Zero/ span shift %FS/100°F (%FS/50°C) | <±0.4 (<±0.36) |
Span shift %FS/100°F (%FS/50°C) | <±0.3 (<±0.27) |
Static acceleration effect | <0.05 PSI/G (Typ.) (Pressure port axis) |
Volume increase due to FS pressure | 5 x 10-5 cu. in. |
Warm-up shift | +0.5% total (±0.1% residual shift after 5 minutes) |
SETRA压力传感器204系列介绍
204 可在很宽的温度范围内提供 ±0.073% FS 的高性能精度。204 提供多种选择，以满足各种简单和苛刻的应用要求。
长期可靠性- 204 型压力传感器采用简单可靠的可变电容传感器设计。204 通过其高效的传感器设计在坚固的应用中提供可重复且可靠的读数。
精度和性能- 204 型是用于中高压范围的测试和测量级传感器。204 涵盖了广泛的压力范围选择，在很宽的温度范围内具有 ±0.073% FS 的精度。204 型的响应时间不到 1 毫秒。
定制标准- 204 提供了许多可以集成到现有系统设计中的机械和电气选项。这些选项减少了工程设计时间，从而可以更早地完成项目并加快上市时间。
The 204 offers high performance accuracy of ±0.073% FS over a wide temperature range. The 204 offers a variety of options to meet a variety of simple and demanding application requirements.
Long-Term Reliability - The Model 204 pressure sensor utilizes a simple and reliable variable capacitance sensor design. The 204 provides repeatable and reliable readings in rugged applications through its efficient sensor design.
Accuracy and Performance - The Model 204 is a test and measurement grade sensor for the medium and high pressure ranges. The 204 covers a wide selection of pressure ranges with ±0.073% FS accuracy over a wide temperature range. The Model 204 has a response time of less than 1 millisecond.
Custom Standard-204 offers many mechanical and electrical options that can be integrated into existing system designs. These options reduce engineering time, allowing for earlier project completion and faster time-to-market.

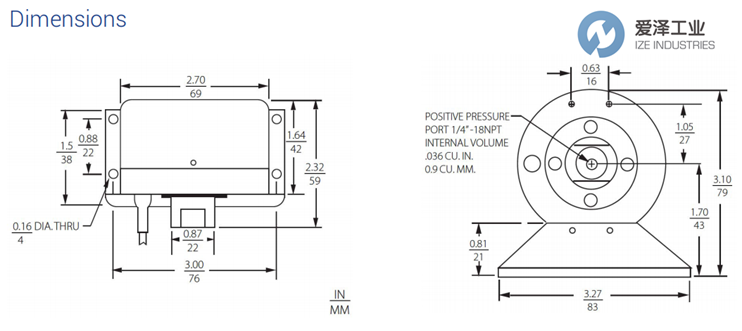

SETRA压力传感器204系列技术尺寸
SETRA压力传感器204系列选型
SETRA压力传感器204系列其他常用型号：
SETRA 204130CPG2F2BY19NN
SETRA 2041025PG2F1110W3
SETRA 2041Z01PV2F1110WNN
SETRA 2041100PG2F111093
SETRA 2041250PG2F2B02WNN
