KLAY液位变送器Hydrobar系列技术参数
Technical details | |
Measuring range min. max. | 0,1…15 bar, adjustable or fixed range |
Process temperature | -10 °C…+70 °C Sensor body and cable |
Accuracy | 0,2 % of adjusted span |
Process connections | Cable hanger, mounting bracket, threaded and flanged connections |
Turn down | 4:1 |
Output | 4-20 mA, 2-wire |
Adjustment | Zero and span adjustable internally only for adjustable version |
Power supply | 12 - 36 Vdc (Ex: 13 - 26,5 Vdc and 17 - 26,5 Vdc for fixed range) |
Protection | IP68 (Submersible parts) |
Ambient temperature | -30 °C..+70 °C, Electronics housing adjustable version |
Diaphragm material | AISI 316L, option Hastelloy C or Gold plated |
Sensor body | AISI 316L |
Cable material | Polyethylene, option Hytrel or PTFE |
Electronics housing | AISI 304, option AISI 316 |
Certificates/approvals | Explosion safety: ATEX Ex-ia, IECEx Ex-ia, EAC Ex-ia |
KLAY液位变送器Hydrobar系列介绍
Hydrobar 是一种带有电缆或延长管的液位变送器。 应用于水、废水和污泥的液位测量。
特征
强力冲洗隔膜
完美的长期稳定性
固定或可调范围
主动温度补偿
The Hydrobar is a level transmitter with cable or tube extension. Application for level measurement of water, wastewater and sludge.
Features
Strong flush diaphragm
Perfect long term stability
Fixed or adjustable range
Active temperature compensation

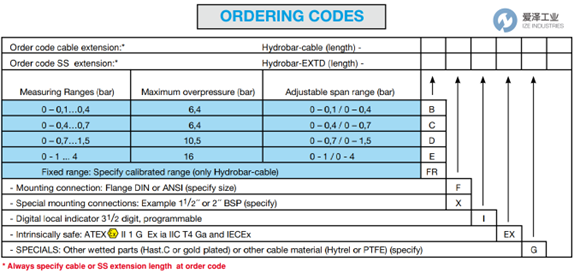

KLAY液位变送器Hydrobar系列选型
KLAY液位变送器Hydrobar系列其他常用型号：
KLAY Hydrobar-Ca(8m)-FR-8mWC-G10-16-104-158
KLAY Hydrobar-Ca(25m)-FR-8mWC-G10-16-104-158
KLAY Hydrobar-Ca(12m)-FR-8mWC-G10-16-104-158
