TEE电机Q3H90L2D40是QS90L2A-40H的升级型号
TEE电机Q3H90L2D40技术规格
Electrical Data | |
VOLTAGE | 230/400 V |
POWER | 2,2 kW/50 Hz |
SPEED | 2917 rpm |
CURRENT | 7,4/4,3 A |
TORQUE | 7,22 Nm |
Cos Ф | 0,87 4/4 |
EFFICIENCY CLASS | IEC 60034-30-1 IE3 |
Mechanical Data | |
Bearing DE | 6305-ZZ |
Bearing NDE | 6205-ZZ |
Lubricants | Shell Gadus S2 V100Q2 |
Condensation drain hole | No |
External earthing terminal | Yes |
Vibration class | A |
Insulation Class | F |
Duty type | S1 |
Direction of rotation | Clockwise |
Housing material | Aluminium |
Color | RAL 7031 |
Motor protection | No |
Method of cooling | IC 411 |
Terminal box position | Top |
Material of terminal box | Aluminium |
Terminal plate thread | M5 |
Cable gland | 1xM25 |
Clamping range | 13-18 mm |
Mounting type | IM 1001 (B3) |
Type of balancing | Half Key |
Environmental Data | |
Ambient Temperature | -20 / + 40 °C |
Altitude above sea level | 1000 m |
Others | |
Type of protection | IP 55 |
Sound Pressure Level 50/60Hz dBA | 62 |
Moment of Inertia (kg.mm2) | 0,0028338 |
Standard | IEC 60034-1 |
Weigth (Kg) | 18,6 |

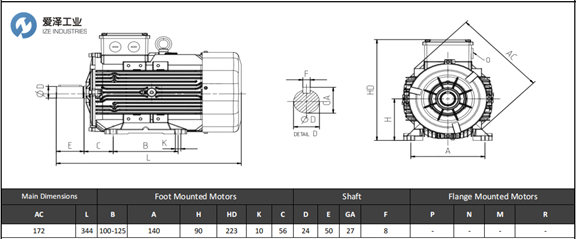

TEE电机Q3H90L2D40尺寸图
