Linear guide type

Linear bushing and   shaft

Filter for linear   bushings and shafts

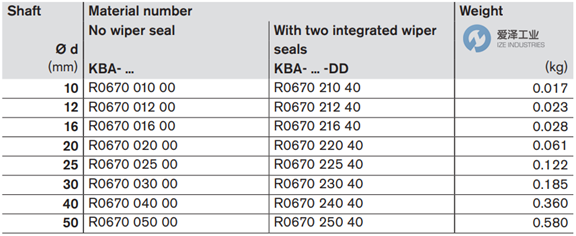

Linear bushings

Format of linear   bushings

– Closed

Series

Super A (with   self-alignment feature)

Maximum dynamic load   capacity Cmax [N]

4820

Max. acceleration amax   [m/s²]

150

Maximum permissible   linear speed vmax [m/s]

3

Footnote maximum   permissible speed vmax

Speeds of up to 5 m/s   possible.
  Service life is limited by heightened wear to plastic parts.
  Tests have shown total travel from 50 • 10⁵ m to 100 •   10⁵ m without failure.

Outer diameter d [mm]

40

Mass m [kg]

0.122

Permissible ambient   temperature

-10 °C ... +80 °C

Friction coefficient μ

0,001 ... 0,0025

Footnote friction   coefficient μ

Friction coefficients   of unsealed Linear Bushings when lubricated with oil.
  The friction coefficient is lowest under heavy load, but can still be above   the specified value even under a low load.

Friction coefficient μ   min.

0.001

Rows of balls

6

Permissible ambient   temperature (max) [°C]

<prefix>+</prefix>80<suffix></suffix>

Permissible ambient   temperature (min) [°C]

<prefix>-</prefix>10<suffix></suffix>

Footnote minimum   dynamic load capacity Cmin

The dynamic load   capacities are based on a total travel of 100,000 m.
  When based on 50,000 m, the C values in the table are to be multiplied by   1.26.

Footnote maximum   dynamic load capacity Cmax

The dynamic load   capacities are based on a total travel of 100,000 m.
  When based on 50,000 m, the C values in the table are to be multiplied by   1.26.

Footnote friction   force FR

One wiper seal:   Multiply by a factor of 0.5.

Friction force [N]

2

Breakaway force [N]

4.5

Friction coefficient μ   max.

0.0025

Footnote breakaway   force

One wiper seal:   Multiply by a factor of 0.5.

Minimum static load   capacity C0min [N]

2180

Maximum static load   capacity C0max [N]

2790

Minimum dynamic load   capacity Cmin [N]

3950

Radial clearance shaft   h6/bore M7

<prefix>+</prefix>18<suffix></suffix>,<prefix>-</prefix>14<suffix></suffix>

Footnote minimum   static load capacity C0min

The load ratings are   based on a total travel of 100, 00 m.
  When based on 50 000 m, the values in the table need to be multiplied by   1.26.

Footnote maximum   static load capacity C0max

The load ratings are   based on a total travel of 100, 00 m.
  When based on 50 000 m, the values in the table need to be multiplied by   1.26.

Friction force FR   footnote 2

Frictional drags   generated by Linear Bushings with integrated wiper seals on two sides when   not under radial load.
  The frictional drags depend on speed and lubrication.

Radial clearance shaft   h6/bore K7

<prefix>+</prefix>25<suffix></suffix>,<prefix>-</prefix>7<suffix></suffix>

Radial clearance   shaft/bore h6/H7

<prefix>+</prefix>43<suffix></suffix>,<prefix>+</prefix>11<suffix></suffix>

Weight [kg]

0.131
