SPRIANO差压变送器SG76-XC01A211A0是SG74-XCB021024的停产替代型号
SPRIANO差压变送器SG76-XC01A211A0技术参数
SG76 PNEUMATIC DP TRANSMITTER PZ |
XC - Body Material: SS A351 CF3M |
01 - Diaphragm: AISI 316 L, Core: AISI 316 L, Filling: Silicone oil Diameter: 3’’ Span Limits: 5 ÷ 52 KPa |
A - Gaskets: PTFE |
2 - Bolts and Nuts: AISI 316 Class A4-70 ISO 3506 NACE MR0175 |
1 - Process connection / Supply: 1/2" NPT F |
1 - Output signal: 0.2 ÷ 1 Kg/cm2 |
A - Options: Without options |
0 - Options: Without options |
Max static pressure: 100 bar |
SPRIANO差压变送器SG76系列介绍
SG76采用力平衡原理工作，由两个主要单元组成： 检测压差变化的测量单元，由两个锻造体和一个测量盒组成。 传输单元将施加到测量元件上的差力转换成比例输出气动信号。 由挡板喷嘴继电器产生的输出压力以不断上升的压力供给反馈波纹管，直到波纹管力和测量元件之间达到平衡。 整个传输单元包含在防水外壳内。
The SG76 works on the force balance principle and consists of two main units: The measuring unit which detects the differential pressure variation and consists of two forged bodies and a measuring capsule. The transmission unit converts the differential force applied to the measuring element into a proportional output pneumatic signal. The output pressure, generated by a flapper nozzle relay, feeds the feedback bellows with a rising pressure until the balance between bellows force and measuring element is reached. The whole transmission unit is contained within a water-resistant housing.

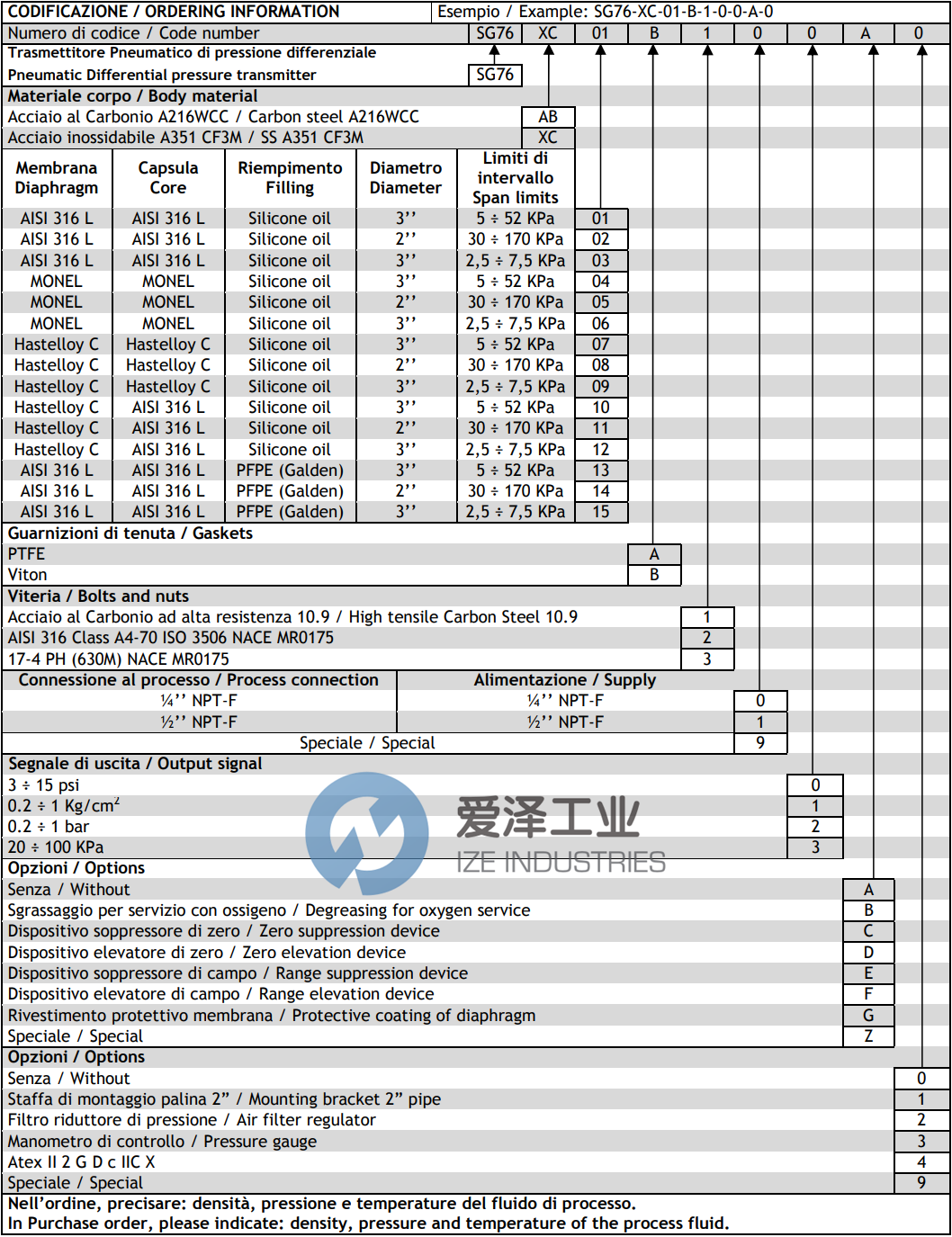

SPRIANO差压变送器SG76系列选型
SPRIANO差压变送器SG76系列其他常用型号：
SPRIANO SG76-XC01A211A0
SPRIANO SG76-XC01B100A0
SPRIANO SG74-XCB021024
