TOKIMEC阀COM-7系列技术参数
Specifications | |
Model Code | COM-7 |
Rated Pressure | 24.5 Mpa |
Allowable Tank Port Back Pressure | Intermal drain: 13.7 Mpa |
Max. control flow | 130 L/min |
Min. control flow | 3 L/min |
Pilot pressure | More than 2 Mpa |
Hysteresis | omitted: less than 7%, F11: less than 14% |
Repeatability | Less than 1% of max. flow |
Flow setting | Solenoid a, b 100 divisions each |
Min. working time | 70 ms |
Acceleration-deceleration time setting | 0 to 9.9s (0.1s unit)/0 to 9.99s (0.01s unit) switchable |
Ambient temperature | 0~60 ℃ |
Fluid temperature | 7~60 ℃ |
Fluid viscosity | 20~300 mm²/s |
Vibration resistance | 45 m/s² (JIS D1601) |
Shock resistance | 300 m/s² (JIS C 0041) |
Waterproof, dustproof | IP54 (control SH, CH, AN) |
Supply voltage | DC 21.6~28V |
Max. power consumption | 40 W (DC 24V, 1.67 A) |
Weight | 12 kg |
TOKIMEC阀COMINCA系列介绍
COMINCA阀门提供独立的加速和减速设定，这对于无冲击操作至关重要。高速定位是传统无冲击阀门难以实现的，并且速度可调。
内置微处理器，可设置所需参数，避免阀门间差异。按钮操作，同时监控集成数字指示器，可实现简单、可重复的设定和调整。手持式设定器也可进行与阀门安装式相同的设定操作。
紧凑、节省空间的设计，与标准电磁阀具有相同的配置和坚固的结构。易于使用的设计，方便操作、安装和维护，并具有手动超控销（用于断电阀门的操作确认）和减少接线等功能。
可像标准电磁阀一样连接到通用继电器、PLC等。
COMINCA valves offer independent setting for acceleration and deceleration which is indispensable for shockless operation. High speed positioning which is difficult with conventional shockless valves and adjustable speed setting is possible.
Onboard microprocessor allows setting of required parameters without valve to valve variation. Push button operation while monitoring the integrated digital indicator enables simple,repeatable setting and adjustment. Handheld setting device also available for same setting operation as valve mounted type.
Compact, space-saving design with same configuration and robust construction as standard solenoid valves. Ease-of-use design facilitates operation as well as installation and maintenance with features such as manual overide pins (for operation confirmation of deenergized valve), and reduced wiring.
Can be connected to general purpose relays, PLCs, etc, like standard solenoid valves.
TOKIMEC阀COMINCA系列选型
TOKIMEC阀COMINCA系列其他常用型号：
TOKIMEC COM-7-31C-130-T-PH1-30
TOKIMEC COM-7-31C-130-AN-T-10
TOKIMEC COM-3
TOKIMEC COM-5
TOKIMEC COM-52
TOKIMEC COM-8
TOKIMEC COM-7
TOKIMEC valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于TOKIMEC阀COM-7-31C-130-T-PH1-30的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for TOKIMEC products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.ize-industries.com.

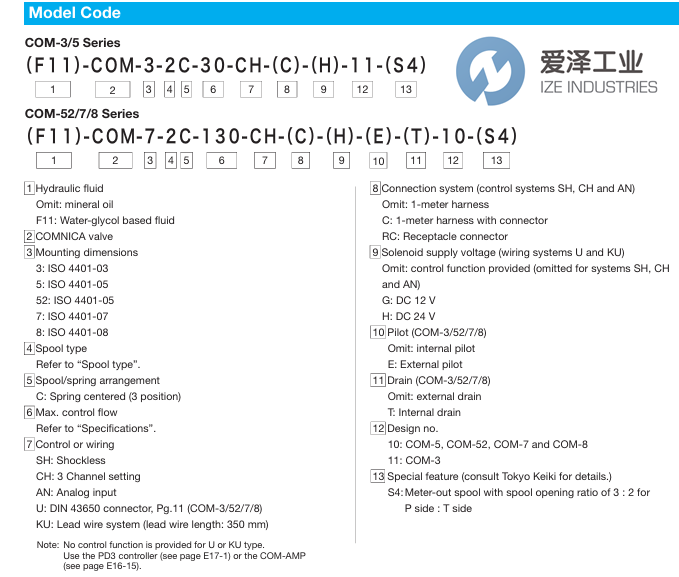

TOKIMEC阀COMINCA系列COM-7-31C-130-T-PH1-30技术参数及选型
