ARGO HYTOS电磁阀RPE3-062X11/02400E1N3-A技术参数
Code | RPE3-062X11/02400E1N3-A |
Series | RPE3 - 4/2 and 4/3 directional control valve, solenoid operated |
Valve size | 6 |
Number of spool positions | 2 - two positions |
Spool symbols | X11 |
Rated supply voltage of solenoids (at the coil terminals) | 02400 - 24 V DC / 1.29 A |
Connector | E1 - EN 175301-803-A |
Manual override | N3 - detent assembly with the ball |
Soft-shift spool speed control | No designation - without soft-shift control |
Seals | No designation - NBR |
Spool monitoring | No designation - without sensors |
Surface treatment | A - zinc-coated (ZnCr-3), ISO 9227 (240 h) |
CSA Certified | No designation - without certification |
ARGO HYTOS电磁阀RPE3-06系列介绍
直动式方向控制阀，带底板安装接口，符合 符合 ISO 4401、DIN 24340 (CETOP 03)
传输液压功率高达 350 bar，优化设计可最大程度地减少压降
五室外壳设计可降低液压动力对流体粘度的依赖性
该阀可配备可互换的直流电磁阀，也可使用内置整流桥提供交流电源
提供多种电磁阀电气端子版本
提供多种可互换线轴和手动超控装置
根据要求提供 CSA 证书
感应式非接触式常开和常闭阀芯位置传感器选项
软换档阀芯速度控制选项
线圈通过锁紧螺母紧固到芯管上，并可 360° 旋转以适应可用空间
为移动领域提供增强的阀壳和钢制部件表面保护（ISO 9227，520 小时盐雾）
Direct acting, directional control valve with subplate mounting interface acc. to ISO 4401, DIN 24340 (CETOP 03)
High transmitted hydraulic power up to 350 bar with optimized design to minimize pressure drop
Five chamber housing design with reduced hydraulic power dependence on fluid viscosity
The valve is available with interchangeable DC solenoids, also for AC power supply using a built-in rectifier bridge
Wide range of solenoid electrical terminal versions available
Wide range of interchangeable spools and manual overrides available
CSA Certificate upon request
Inductive contactless Normally Open and Normally Closed spool position sensor option
Soft-shift spool speed control option
The coil is fastened to the core tube with a retaining nut and can be rotated by 360° to suit the available space
Enhanced surface protection for mobile sector available for the valve housing and steel parts (ISO 9227, 520 h salt spray)

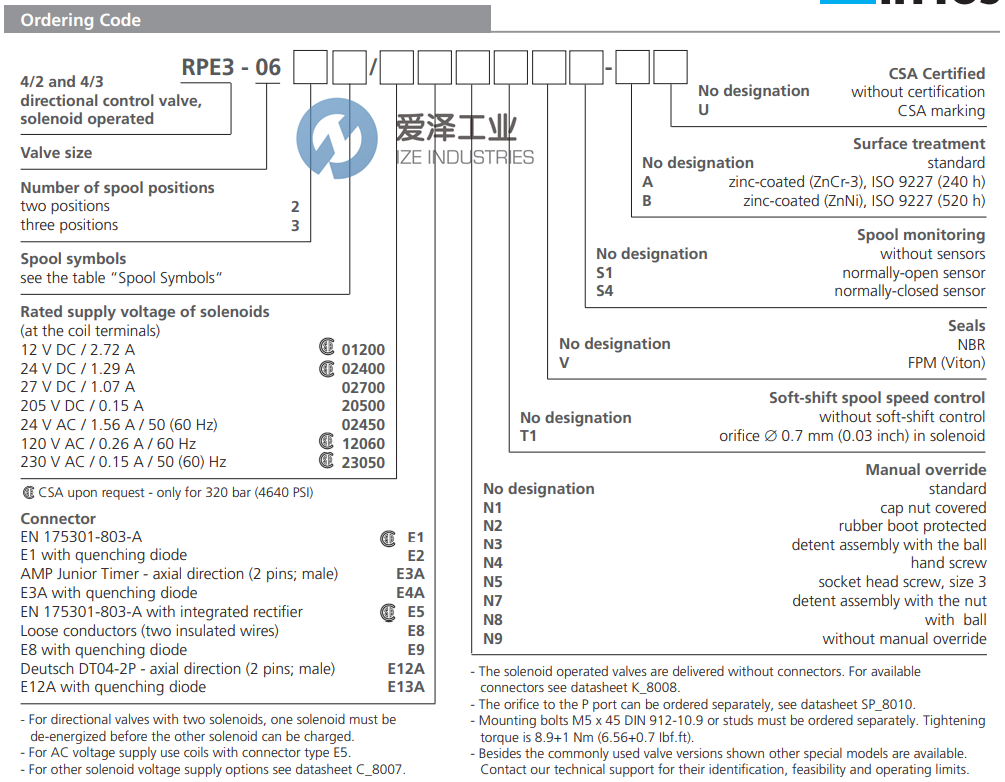

ARGO HYTOS电磁阀RPE3-06系列选型
ARGO HYTOS电磁阀RPE3-06系列其他常用型号：
ARGO HYTOS RPE3-062X11/02400E1N3-A
ARGO HYTOS RPE3-062X11/02400E1
ARGO HYTOS RPE3-063Z11/02400E12A
