SAMSON转换器6111-0020121711000000技术参数

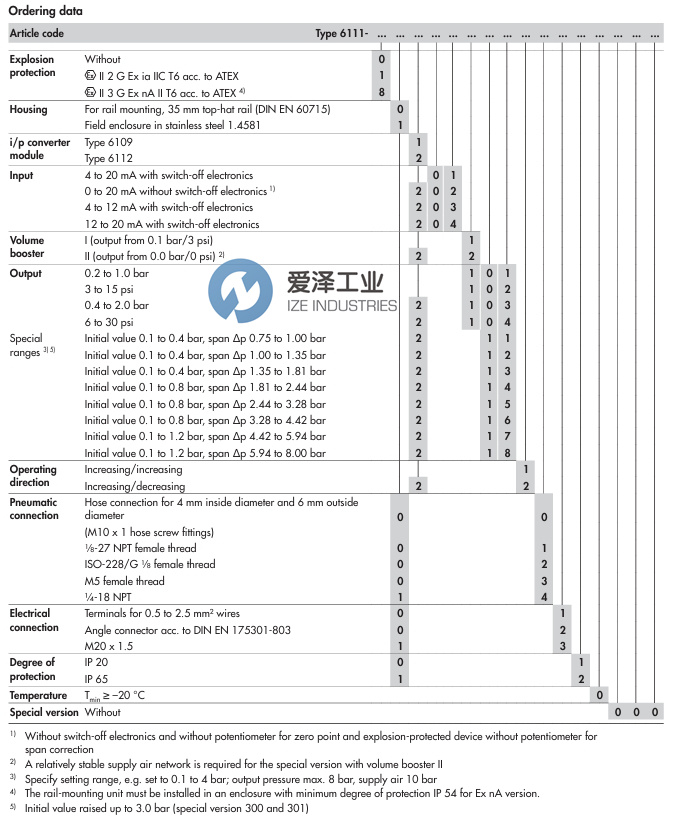

Article code | Type 6111 |
Explosion | 0 = Without |
Housing | 0 = For rail mounting, 35 mm top-hat rail (DIN EN 60715) |
i/p converter module | 2 = Type 6112 |
Input | 01 = 4 to 20 mA with switch-off electronics |
Volume booster | 2 = II (output from 0.0 bar/0 psi) |
Output | 17 = Initial value 0.1 to 1.2 bar, span ∆p 4.42 to 5.94 bar |
Operating direction | 1 = Increasing/increasing |
Pneumatic connection | 1 = 1/8-27 NPT female thread |
Temperature | 0 = Tmin ≥ –20 °C |
Special version | 000 = Without |
SAMSON转换器6111系列介绍
用于将直流输入信号转换为气动输出信号，用于测量和控制任务，特别适合用作电气测量装置和气动控制器之间或电气控制装置和气动控制阀之间的中间元件。
这些转换器专为各种工业应用而设计，尤其适用于过程工程领域。
转换器可接受与负载无关的 4 至 20 mA 或 0 至20 mA 直流输入信号，并将其转换为气动输出信号。
通过安装各种转换器模块，6111 型 i/p 转换器可提供宽输出压力范围。最大输出压力可达 8 bar。
Used to convert a direct-current input signal into a pneumatic output signal for measuring and control tasks · Particularly suitable as intermediate element between electric measuring devices and pneumatic controllers or between electric control devices and pneumatic control valves
These converters are designed for use in all kinds of industrial applications, especially in the field of process engineering.
The converters accept a load-independent 4 to 20 mA or 0 to 20 mA direct current input signal which they convert into a pneumatic output signal.
Wide output pressure ranges can be selected for the Type 6111 i/p Converter by installing various converter modules. The maximum output pressure that can be achieved is 8 bar.
SAMSON转换器6111系列选型
SAMSON转换器6111系列其他常用型号：
SAMSON 6111-0020121711000000
SAMSON 6111-0010110110110000.00
SAMSON 6111-00201111110000.00
SAMSON 6111-0020110311110000.00
SAMSON 6111-0020121810110000.00
SAMSON 6111-0020111712210000.00
SAMSON 6111-0020121711110000.00
SAMSON 6111-0020121511110000.00
SAMSON 6111-0010110112210000
SAMSON converter NEW + ORIGINAL+ ONE YEAR WARRANTY
