TURIAN旋转接头GR系列介绍
这是一款多用途旋转接头系列。一对滚珠轴承确保密封面完美对准，即使在重载工况下接头本身的扭矩也很低。平衡式密封可以使接触面保持几乎恒定的负载，不受流体介质压力的影响，从而减少摩擦和磨损。标准设备提供合成碳石墨旋转密封和烧结碳化硅固定密封，两者可互换。在与水一起使用时，测试表明，在相同工况下，这种组合的使用寿命比碳石墨和陶瓷的组合长许多倍。如果需要非常耐磨的密封，可以提供SiC/SiC组合。浮动密封和转子密封均可快速轻松更换，具有高耐磨性和长寿命，使该系列成为解决流体从静态部件到旋转部件传输问题的经济实惠的解决方案。
This is a versatile range of rotary unions. A pair of ball bearings ensures perfect alignment of the sealing faces, and the torque on the union itself is low even under heavy loads. Balanced seals maintain a nearly constant load on the contact surfaces, independent of the pressure of the fluid medium, reducing friction and wear. Standard equipment includes a synthetic carbon graphite rotary seal and a sintered silicon carbide stationary seal, both of which are interchangeable. When used with water, tests have shown that this combination has a service life many times longer than a combination of carbon graphite and ceramic under the same operating conditions. If extremely wear-resistant seals are required, a SiC/SiC combination is available. Both floating and rotor seals can be replaced quickly and easily, and their high wear resistance and long life make this series an economical solution for transferring fluids from static to rotating components.

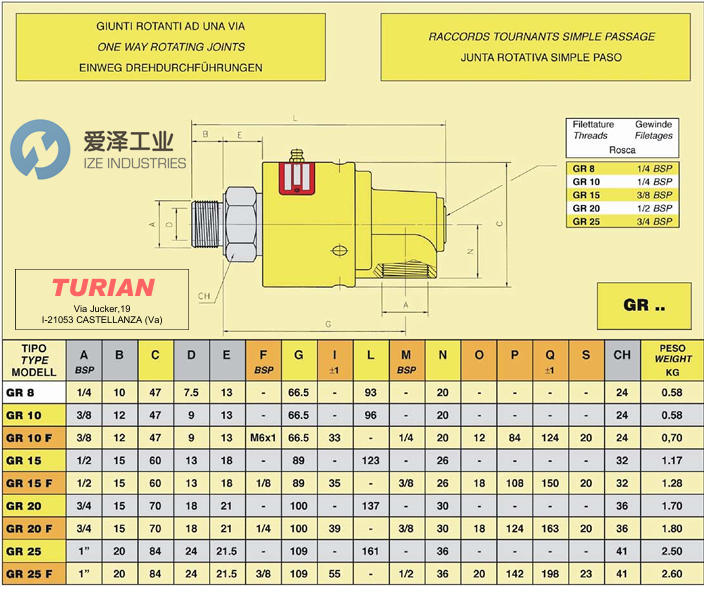

TURIAN旋转接头GR系列规格尺寸
TURIAN旋转接头GR系列其他常用型号：
TURIAN GR15-9387
TURIAN GHR 34 2U
TURIAN GR 40F LH
TURIAN GR 20F RH
TURIAN G-2V-9743
TURIAN GR 25 F RH
TURIAN GH-34-2U/SP
TURIAN GR-25-RH
TURIAN GR-25-B-RH
TURIAN GR 40 RH
TURIAN GR 20 LH
TURIAN GR 20 RH
TURIAN Rotary joint NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于TURIAN旋转接头GR15-9387的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for TURIAN products, please feel free to dial 0086-21-3100 6702/ send request email to [email protected] / browse our website: www.ize-industries.com.
TURIAN旋转接头GR系列GR15-9387技术参数及介绍
